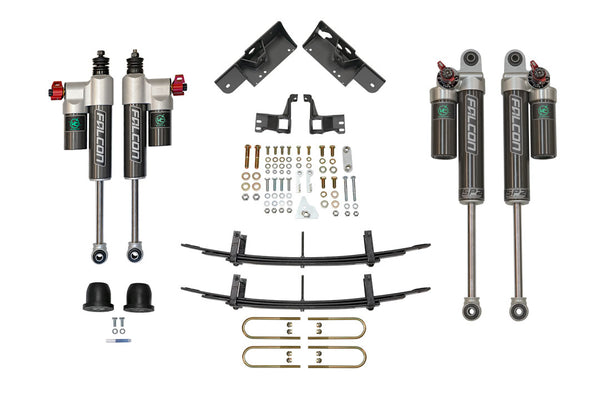

Van Compasss Stage 4.3 System Sprinter 2500 4X4/AWD (2015-Up) Van Compass

It's the best seller for a reason. With everything needed to properly correct the handling problems heavy Sprinters can experience, our 4.3 kit is the go-to choice for many owners.

Whether you are looking for maximum stability in highway travel and treacherous wind conditions, or maximum compliance off pavement, we're able to minimize side to side sway and balance out jarring impacts using our deep knowledge of suspension tuning.

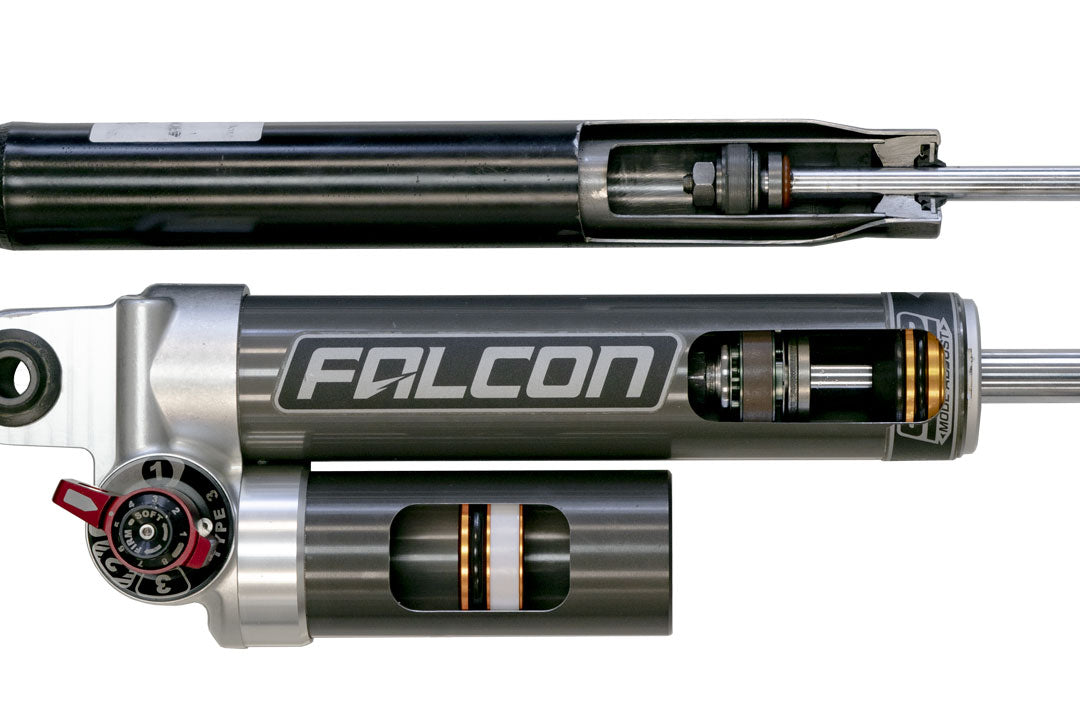

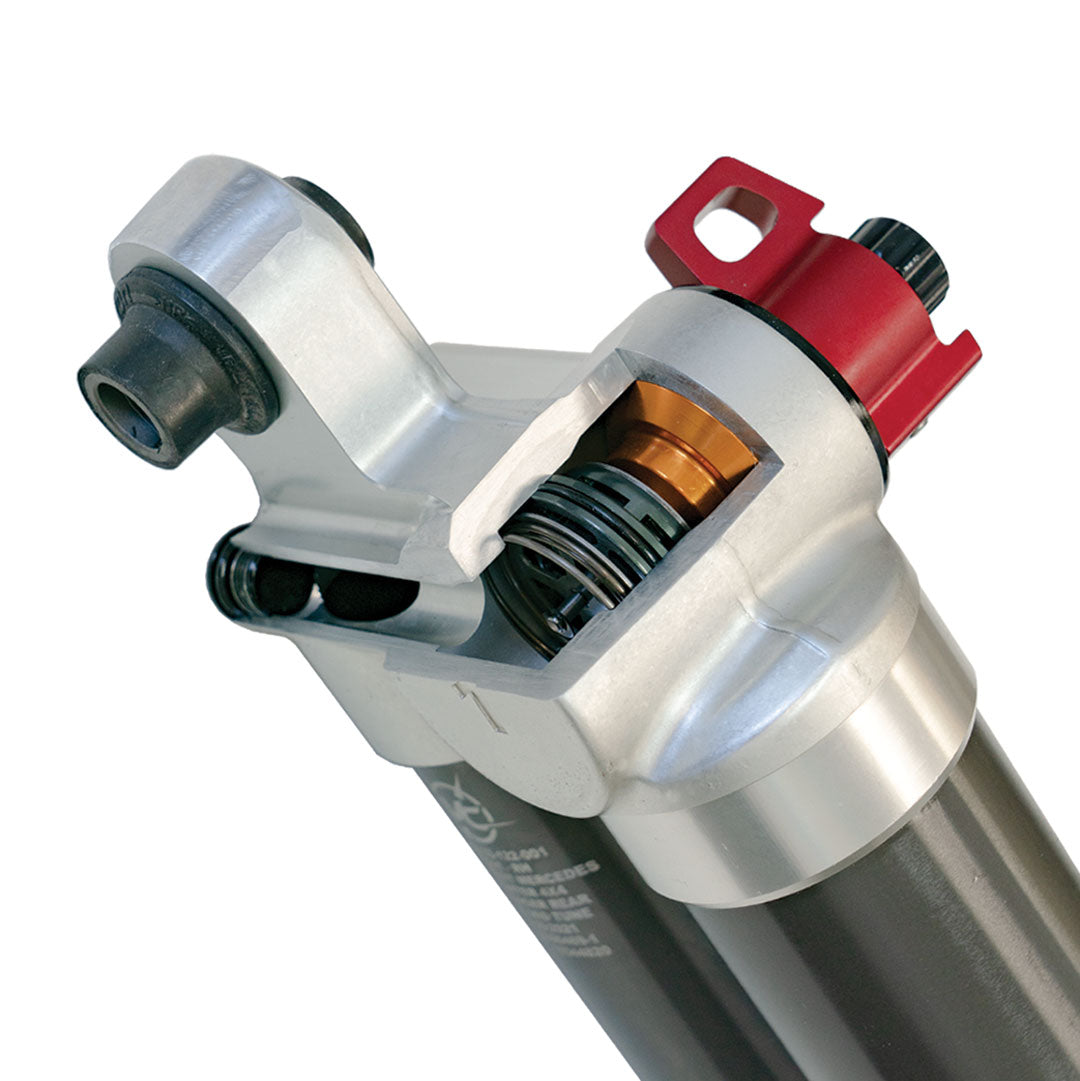

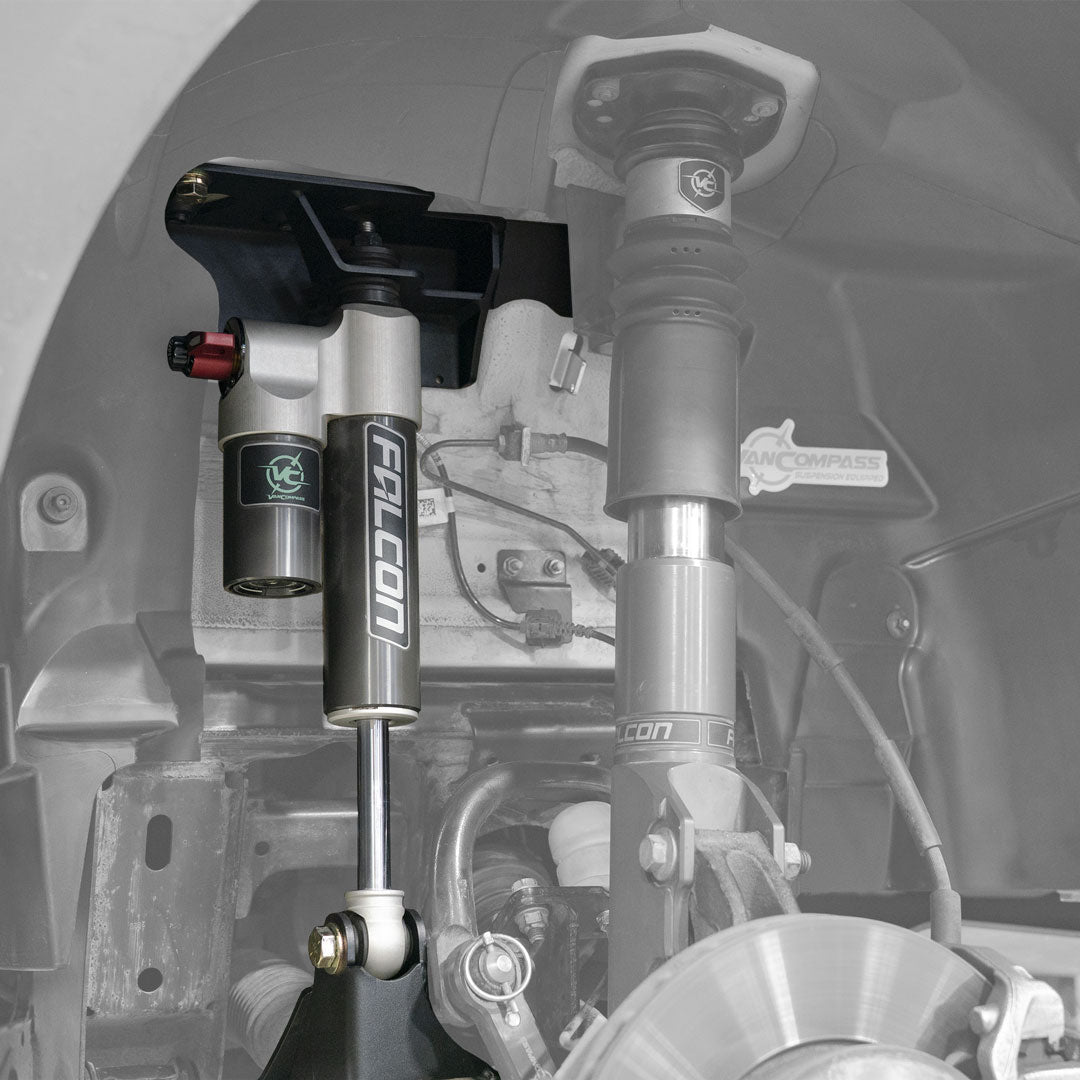

The cornerstone of our Stage 4.3 kit is the 4-corner, adjustable Falcon 3.3 Fast Adjust Shocks with their huge range of compression adjustment available at the simple flip of a large, easily accessed Fast Adjust knob. This allows you to quickly adjust from the softest to firmest settings over a significantly larger range than the competition's smaller adjusters.

A larger range of adjustment means the shocks are more effective and adaptable to multiple modes of use.

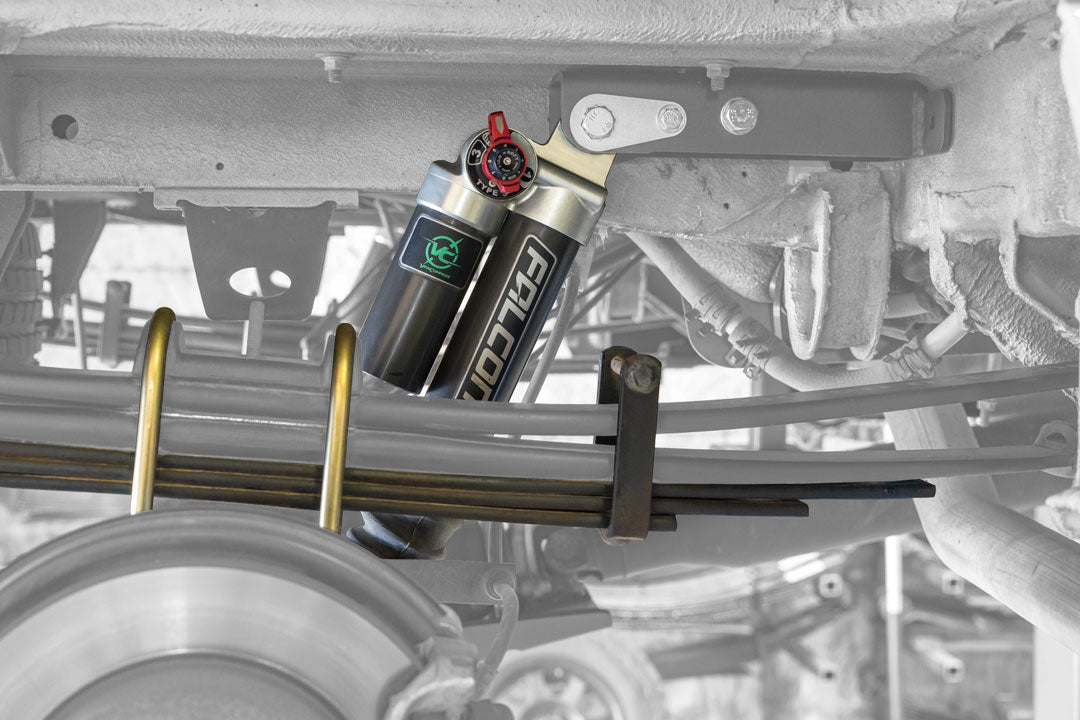

The rear mini leaf spring pack, tuned specifically to work with the stock rear leaf spring, restores lost ride height and corrects sag while retaining the quiet ride of the factory leaf spring. Typically, 1.25 Inch of rear lift is seen, resulting in a nicely leveled stance.

Our progressive foam Bump Buddy replacement jounce bumpers replace your hard factory rubber bump stops, adding improved spring curve progression, reducing sway, and increasing bottom out resistance without any unnecessary clunking or harshness.

Features and Benefits:

• VC tuned Falcon 3.3 Adjustable shocks with 10 intuitive firmness settings
• Restores lost ride height and reduces sagging
• Enhanced cornering stability and reduced wind sway
• More effective control over large and small bumps
• Improved handling feel on rough roads and broken pavement
• Increased bottom out resistance
• 100 Percent bolt on

Associated Comments:

• Recommended Wheel Size: 17 Inch x 8.5 Inch, +45MM offset
• Note: Wheels with 6.5 Inch backspacing, or +52MM offset on an 8 Inch wheel, require a minimum 14 mm wheel spacer to prevent tire contact with auxiliary shocks at full steering angle. Ex: Black Rhino Warlord, Method 701
• Note: Vans equipped with HD Rear Ac Package require extra care when mounting front shocks, refrigerant lines may need to be slightly bent and re-secured.
• Note: Not compatible with Sumo Spring Rebel series of springs, specifically Sumo Spring part numbers: SSR-327-47-2 and SSR-327-40-2 There is a Sumo Spring bracket associated with those kits which makes contact with the shock body.

Details:

• Grade Type: Performance
• Hardware Included: Yes
• Recommended Shop Labor Time: 8 Hours
• Maximum Lift: 1.5 Inch
• Shocks Included: Yes
• Strut(s) Included: No
• Bushings Included: Yes
• Leaf Spring Leaf Quantity: 3
• Shock Tune: Light/Mid
• Maximum Lift Rear: 1.5 Inch
• Leaf Spring Color: Black
• Spring Material: Steel
• Spring Color: Black
• Drive: 4WD|AWD
• Warranty: 1 Year Shocks 60 Days-Finish Limited Lifetime-Structural

Van Compass Stage 4.3 - Sprinter 2500 4X4 - Falcon 3.3 Shocks, Front Sumo, Mini Pack, Light/Mid Tune
