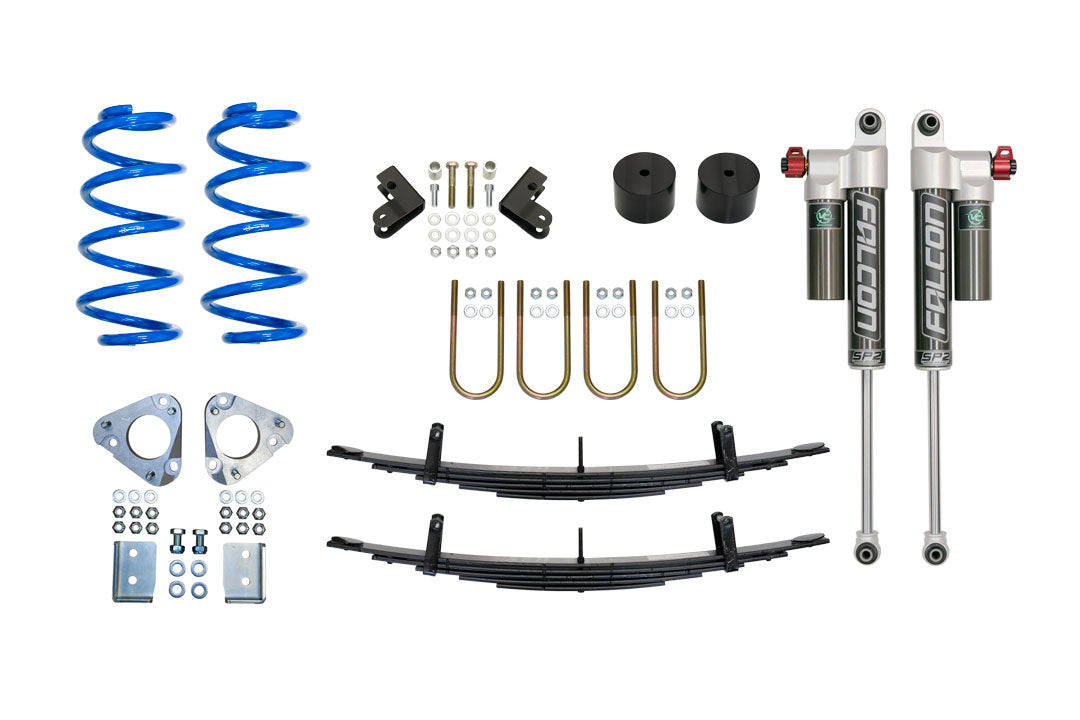

Stage 4 Topo 2.0 System Light/Mid Weight Tune Ford Transit AWD (2020-Up Single Rear Wheel) Van Compass

Improve the ride quality and stance of your Ford Transit AWD with the Stage 4 Topo 2.0 package. This tuned suspension system will dramatically improve your ride quality and our Topo kit was developed specifically to work around the packaging and front CV shaft constraints presented by the AWD Transit platform.

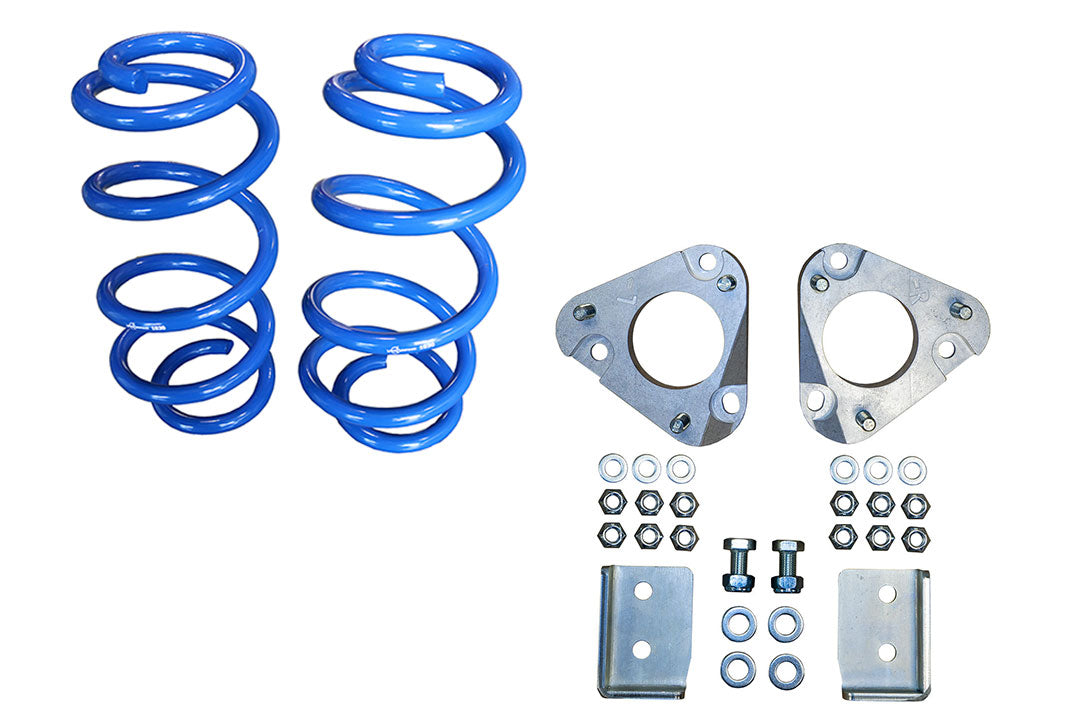

Our Topo 2 Inch lift kit includes a precision engineered 0.75 Inch lift camber correction plate, with a tuned coil spring. By engineering the spring length and rate to our specifications we gain 1.25 Inch of lift, with a corresponding increase in compression travel.

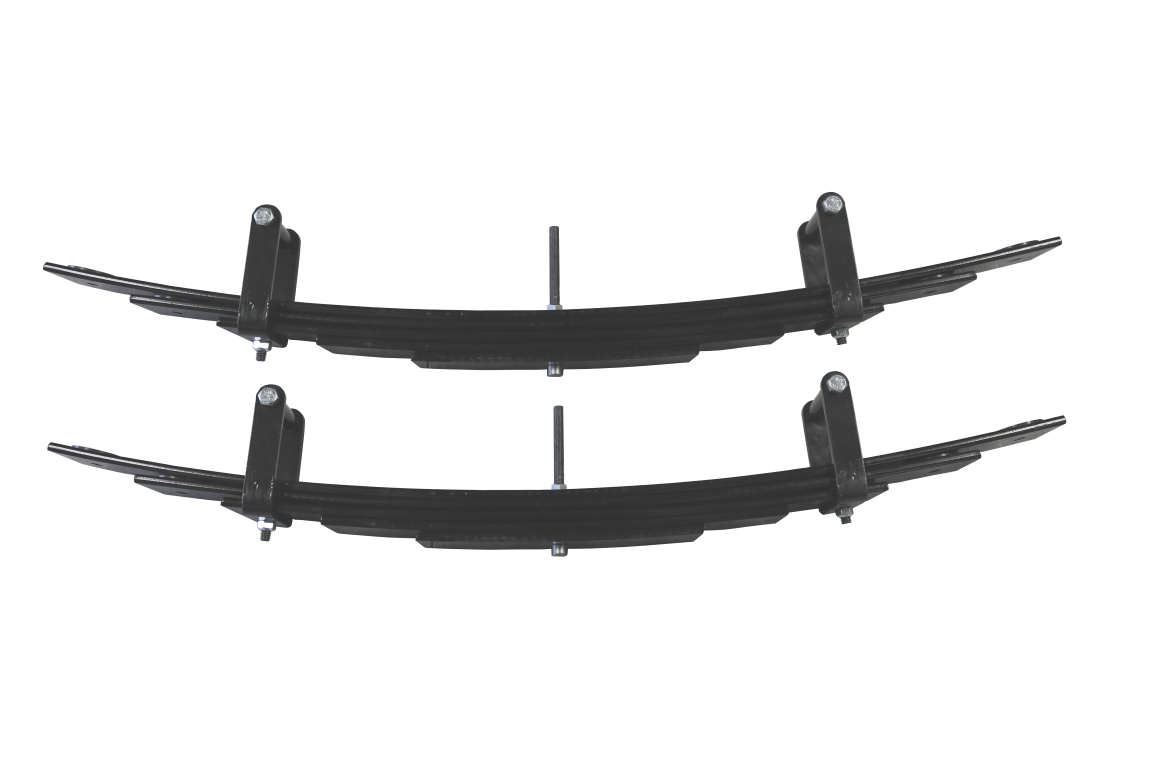

A 5-leaf mini pack works in conjunction with the factory leaf pack to provide a 10-15 Percent spring rate increase in the rear while lifting the back of the van anywhere from 2.0 Inch to 2.5 Inch depending on vehicle weight. Friction reducing tips on our leaves ensure a smooth, quiet ride.

Included rear shock relocation brackets allow for the low hanging factory brackets to be trimmed, resulting in better overall ground clearance under the axle tube.

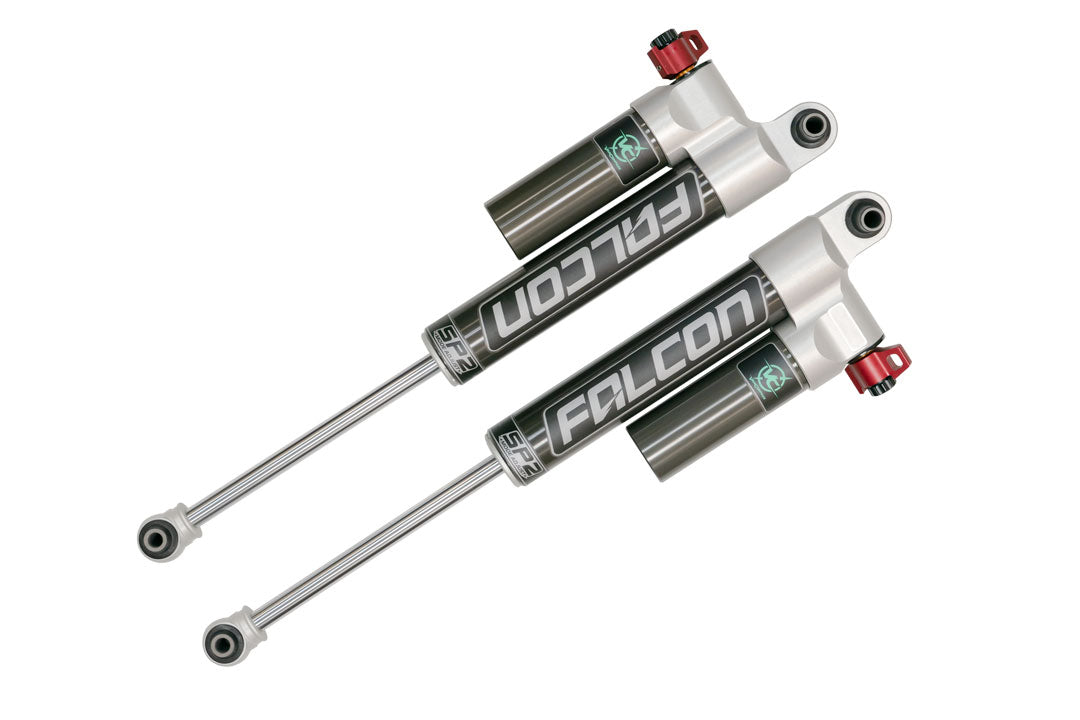

Adjustable Falcon 3.3 Fast Adjust Shocks feature a huge range of compression adjustment available at the simple flip of a large, easily accessed Fast Adjust knob. This allows you to quickly adjust from the softest to firmest settings over a significantly larger range than the competition's smaller adjusters.

A larger range of adjustment means the shocks are more effective and adaptable to multiple modes of use.

Features and Benefits:

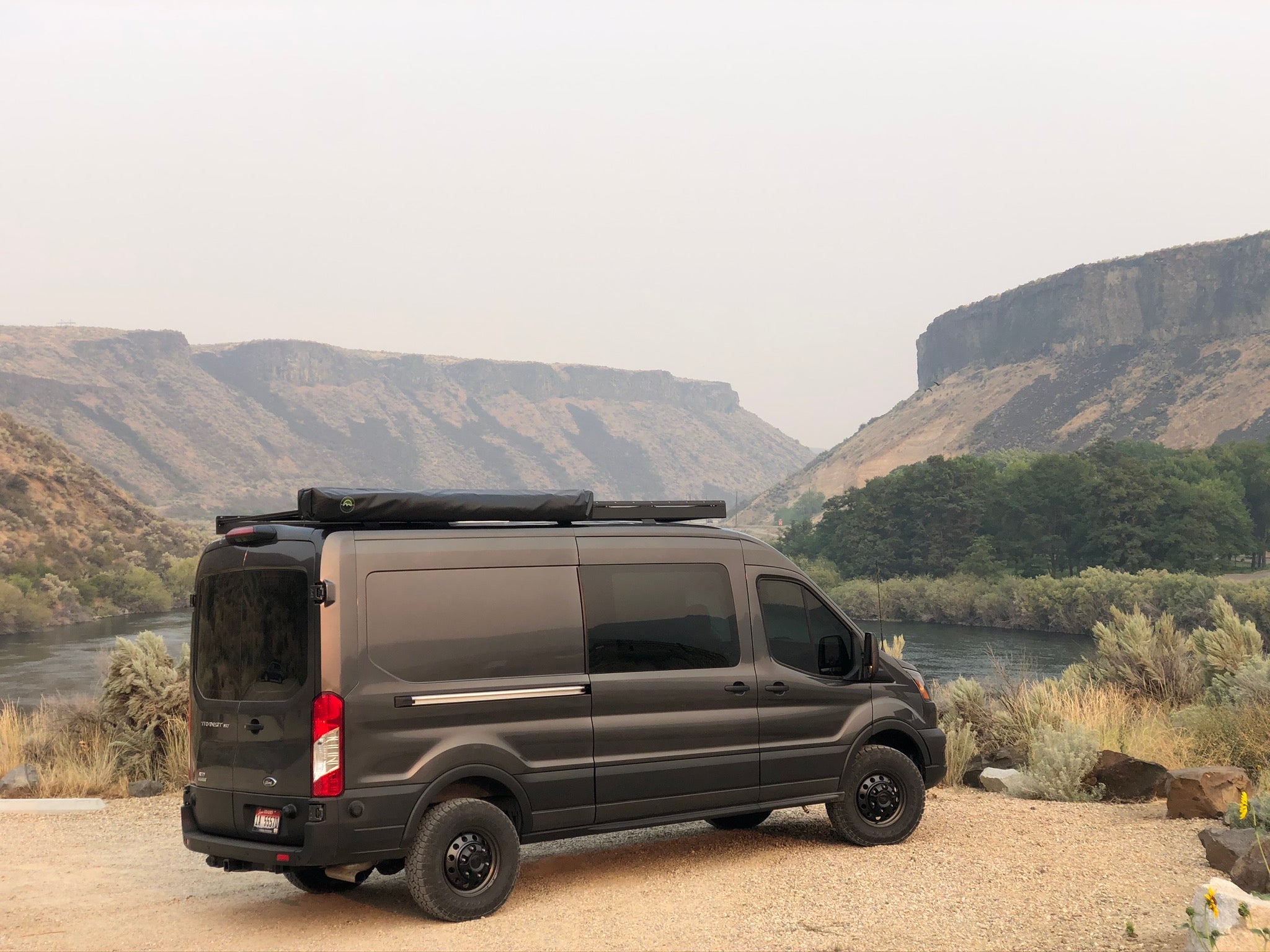

• Aggressive, 2 Inch taller stance allows larger tires to smooth out terrain
• Increased approach, break over and departure angles
• VC tuned Falcon 3.3 Adjustable rear shocks with 10 intuitive firmness settings
• Light/Mid weight shock tune for vans under 8500 lbs
• Increased rear spring rate fights sag
• Enhanced cornering stability and reduced wind sway
• More effective control over large and small bumps
• Improved handling feel on rough roads and broken pavement
• Increased bottom out resistance

Associated Comments:

• Note: Bilstein B6 strut are not included with AWD systems, their added length CAN cause CV boot failure
• Note: Van must be professionally aligned after lift kit installation! Adverse tire wear and driving characteristics will result if van is not properly aligned.

Details:

• Lift Height: 2.0 Inch
• Grade Type: Performance
• Hardware Included: Yes
• Recommended Shop Labor Time: 8.25 Hours
• Maximum Lift: 2.0 Inch
• Shocks Included: Yes
• Strut(s) Included: No
• Bushings Included: Yes
• Leaf Spring Leaf Quantity: 5
• Shock Tune: Light/Mid
• Maximum Lift Front: 2 Inch
• Maximum Lift Rear: 2 Inch
• Leaf Spring Color: Black
• Spring Material: Steel
• Coil Spring Color: Blue
• Coils Quantity Front: 2
• Warranty: 1 Year Shocks 60 Days-Finish Limited Lifetime-Structural

Van Compass Stage 4 Topo 2 Inch Lift Kit - Ford Transit AWD, Light/Mid Tune
