Rear 5 Leaf Mini Spring Pack Ford Transit (2015-Up Single Rear Wheel) Van Compass

As a vehicle approaches its Gvwr (Gross Vehicle Weight Rating) the rear suspension will naturally begin to sag and ride quality will begin to suffer. The Ford Transit van is no different.

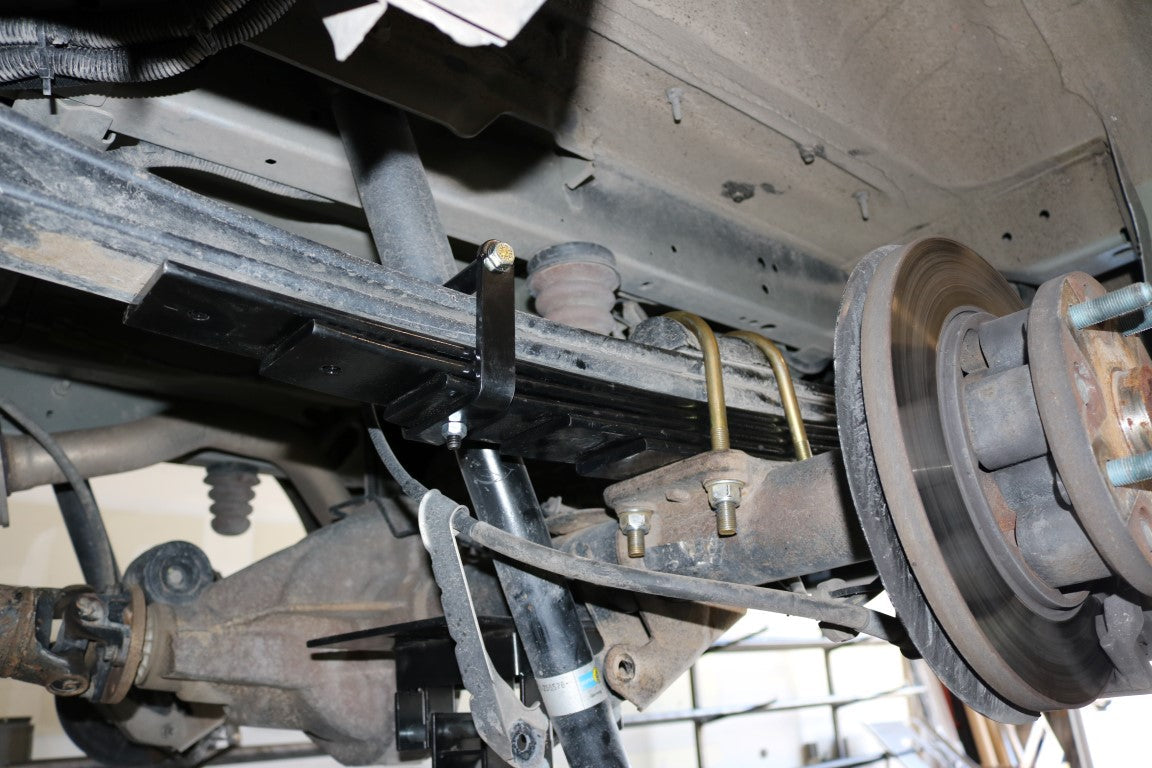

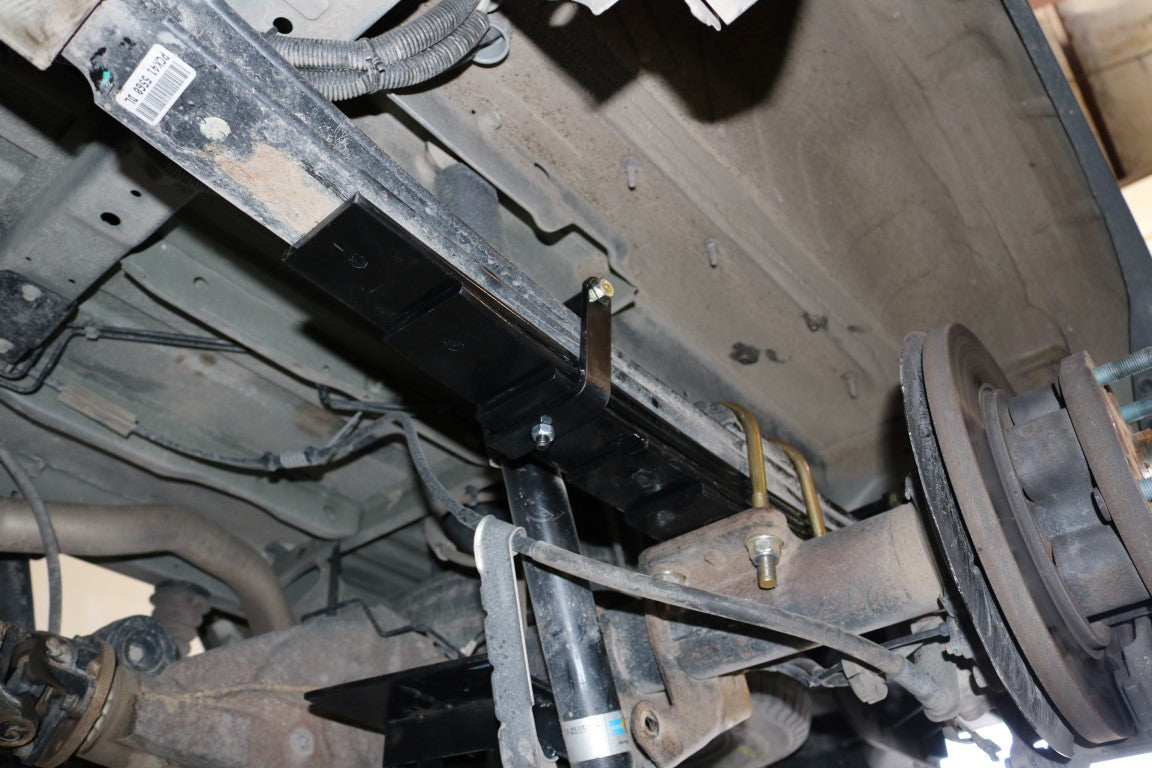

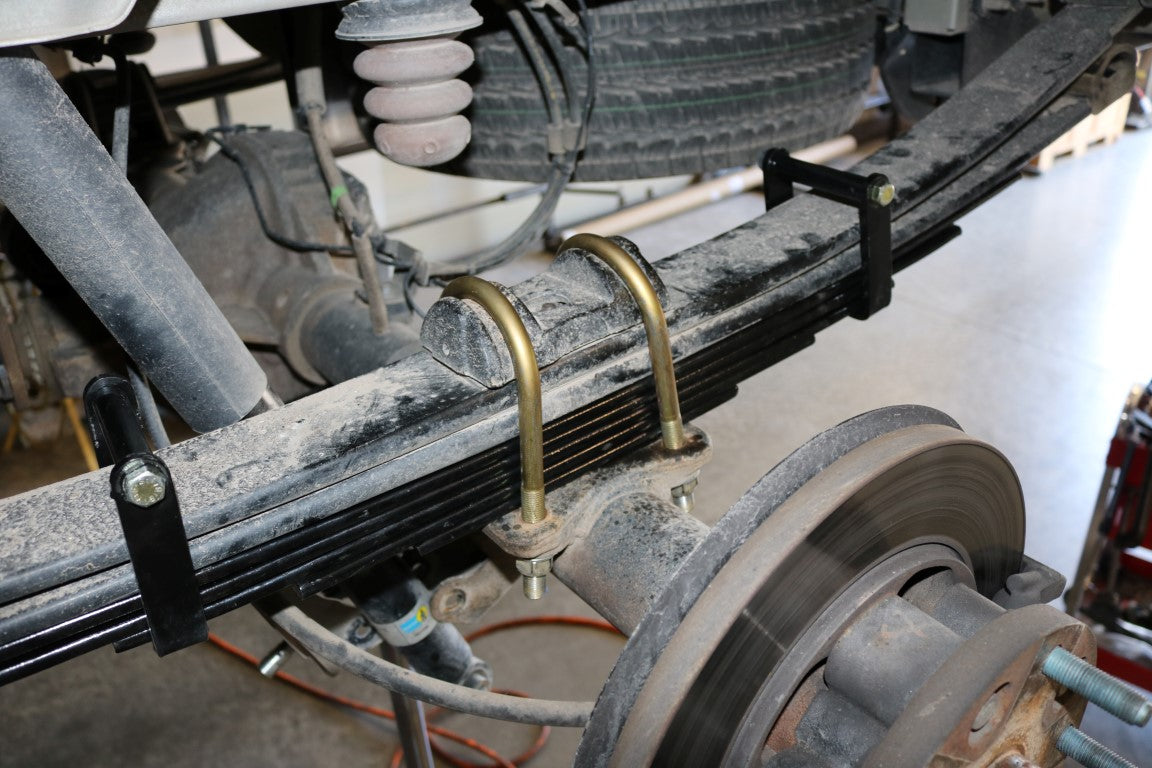

This multi leaf spring pack installs under the factory leaf springs and can increase ride height from 1 Inch to 1.5 Inch depending on the vehicle's weight distribution when installing 3 of the 5 springs. Install all 5 springs to get 2-2.25 Inch inches of lift.

The increase in spring rate gained by this leaf pack along with the additional clearance between the bump stop and axle will reduce the chances of bottoming out, enhance vehicle stability, ride comfort and restore the factory look of the van. This product is designed to improve ride and handling while at or near Gvwr, however we do not recommend exceeding the manufacturer's Gvwr.

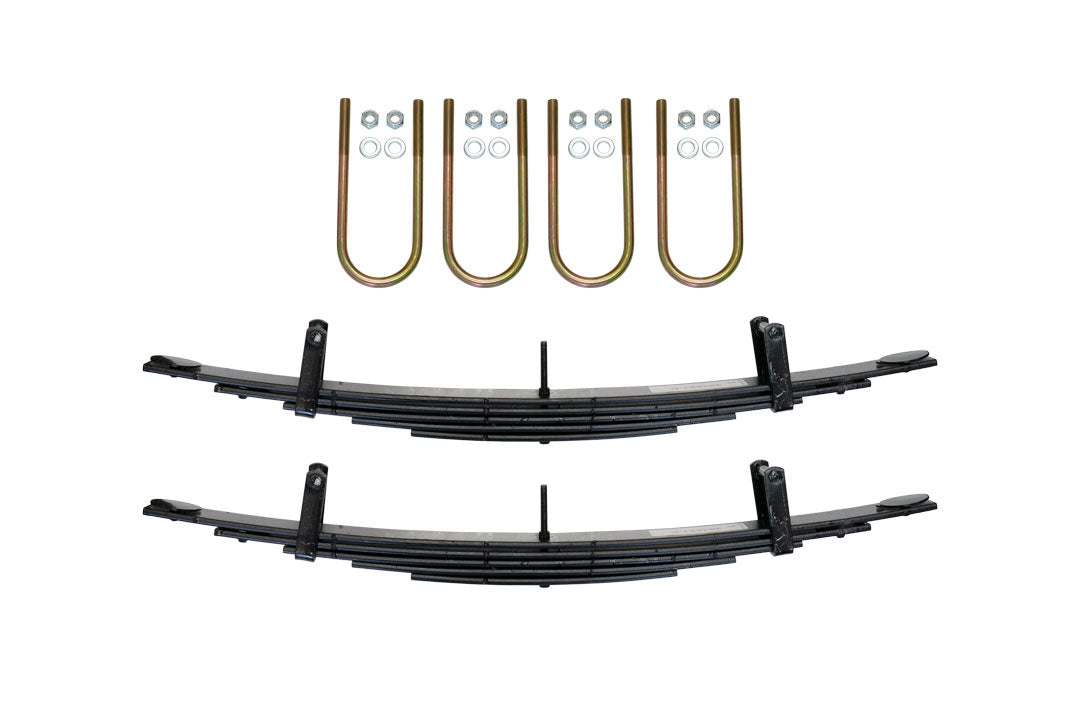

All new hardware is included with this kit. New longer U-bolts, washers and locking nuts ship with the springs.

For Quigley and Quadvans that are designed with a built in 2 Inch lift from their respective 4X4 conversion, all 5 leaf springs can be installed to replace the rear lift block installed by Quigley / Quadvan. These can also be added to Van Compass Terrain 2WD 2.5 Inch lifted vans by removing the lift block.

The full 5 leaf pack will retain or in most cases lift the van an additional 1 Inch from its current height. A drastic improvement in vehicle stability and ride comfort can be expected for a fully loaded / built out 4WD Transit.

The driver can expect a much sportier feel and less side-to-side rocking when traversing uneven bumps both on and off road. Pair this spring pack with our tuned rear Falcon shocks to achieve the ultimate in ride and handling comfort for the Ford Transit.

Features and Benefits:

• The Ford Transit van is no different
• Pair this spring pack with our tuned rear Falcon shocks to achieve the ultimate in ride and handling comfort for the Ford Transit
• A drastic improvement in vehicle stability and ride comfort CAN be expected for a fully loaded / built out 4WD Transit
• This multi leaf spring pack installs under the factory leaf springs and CAN increase ride height from 1 Inch to 1
• For Quigley and Quadvans that are designed with a built in 2 Inch lift from their respective 4X4 conversion, all 5 leaf springs CAN be installed to replace the rear lift block installed by Quigley / Quadvan
• As a vehicle approaches its GVWR (Gross Vehicle Weight Rating), the rear suspension will naturally begin to sag and ride quality will begin to suffer
• All new hardware is included with this kit
• These CAN also be added to Van Compass Terrain 2WD 2
• This product is designed to improve ride and handling while at or near GVWR, however we do not recommend exceeding the manufacturer's GVWR
• The increase in spring rate gained by this leaf pack along with the additional clearance between the bumpstop and axle will reduce the chances of bottoming out, enhance vehicle stability, ride comfort and restore the factory look of the van
• The driver CAN expect a much more sporty feel and less side to side rocking when traversing uneven bumps both on and off road
• Install all 5 springs to get 2-2
• 5 Inch lifted vans by removing the lift block
• 25 Inch inches of lift
• The full 5 leaf pack will retain or in most cases lift the van an additional 1 Inch from its current height
• New longer U-bolts, washers and locking nuts ship with the springs
• 5 Inch depending on the vehicle's weight distribution when installing 3 of the 5 springs

Associated Comments:

• Note: Not compatible on 350HD model with dual rear wheel axle.

Details:

• Grade Type: Performance
• Hardware Included: Yes
• Recommended Shop Labor Time: 2 Hours
• Maximum Lift: 2.25 Inch
• Color: Black
• Material: Steel
• Minimum Lift: 1 Inch
• Warranty: 60 Days-Finish on U-Bolts Limited Lifetime-Leaf Springs

Van Compass Rear Mini Spring Pack, 5 Leaf - Ford Transit
