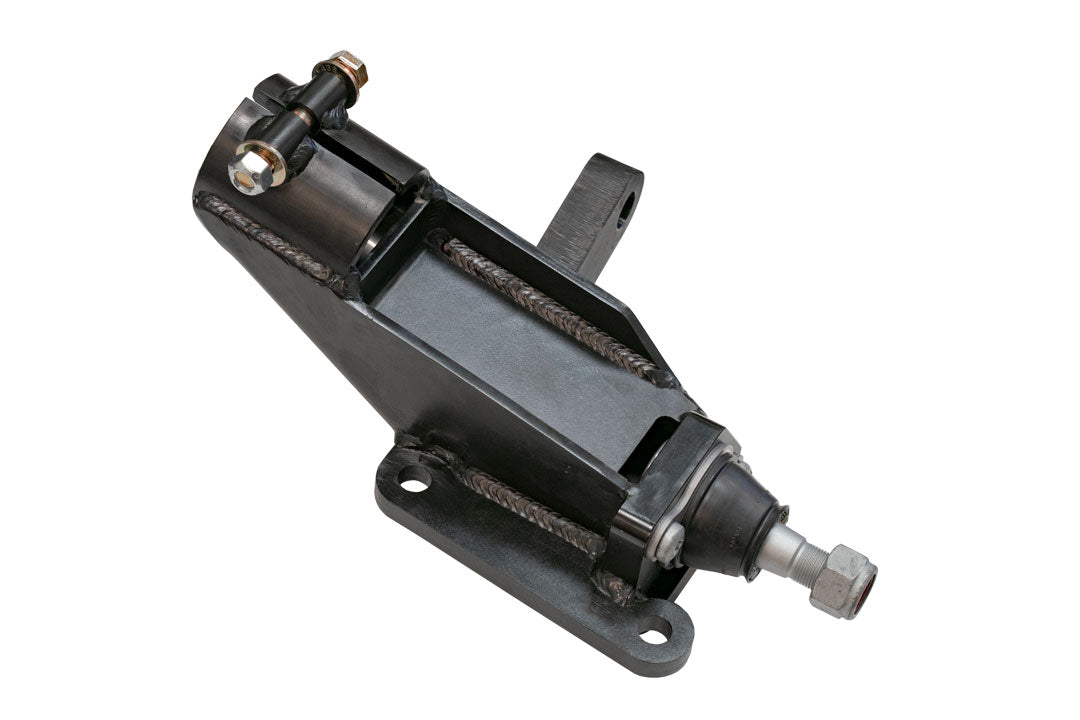

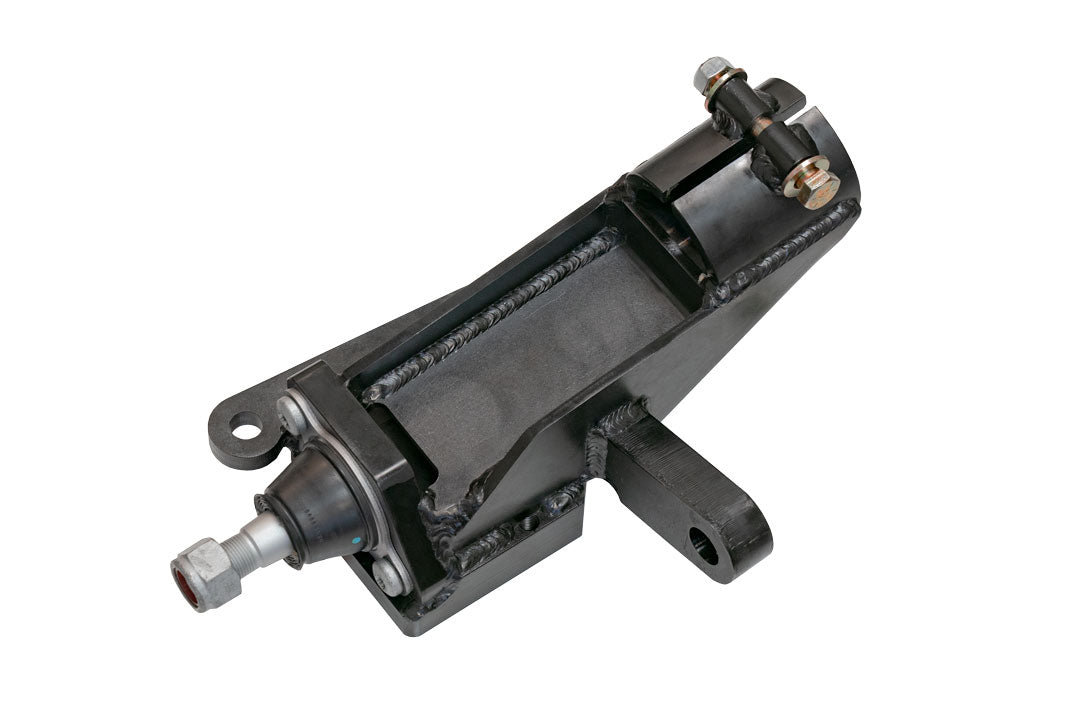

Front 2 Inch Lift Spindle Ford Transit (2015-Up RWD Single Wheel Only) Van Compass
Front 2 Inch Lift Spindle Ford Transit (2015-Up RWD Single Wheel Only) Van Compass
Front 2 Inch Lift Spindle Ford Transit (2015-Up RWD Single Wheel Only) Van Compass
Front 2 Inch Lift Spindle Ford Transit (2015-Up RWD Single Wheel Only) Van Compass
Click to open expanded view

ALL DISCOUNTS APPLIED IN CART!

Front 2 Inch Lift Spindle Ford Transit (2015-Up RWD Single Wheel Only) Van Compass

Price
$1,664.95

📞 Price too high or questions before ordering? Call/text us at 475-227-5381

Get the most clearance possible from your Transit RWD with our Front 2 Inch Lift Spindle!

Lift spindles are a long-time staple of the desert racing world, adding front clearance where it matters most: underneath the front control arms, cross members and frame. The added clearance allows easier fitment of larger tires, further increasing ground clearance and upping the capability of your 2WD van.

Track width is increased modestly (1/2 Inch per side, 1 Inch total) for increased stability and a better scrub radius with larger tires.

When properly engineered, there are no down sides. Our spindle was carefully designed to preserve the complex geometry of the front end without altering tie rod angle or placement, maintaining camber, caster and Ackerman angles within their correct specifications.

Precision cut and machined parts key together to ensure solid construction. Motorcraft ball joints come pre-installed to simplify the installation process and ensure years of trouble free service.

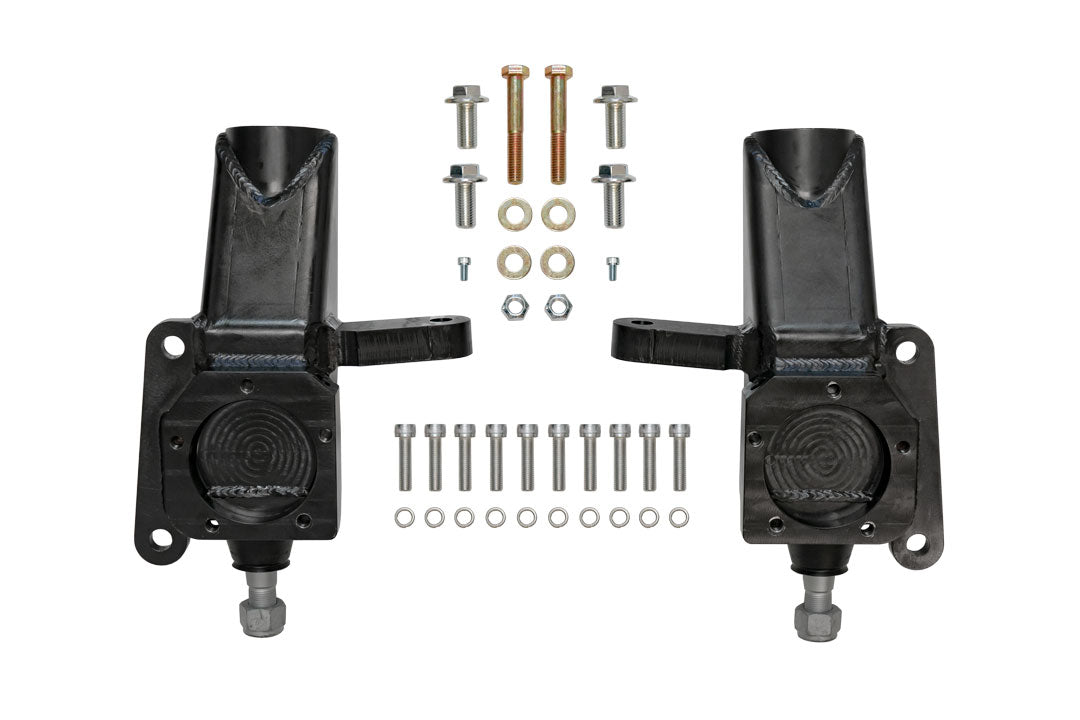

A complete hardware kit is included, and the spindles are plated with zinc oxide for corrosion resistance.

Designed to work both as a standalone product to lift the front for a leveled stance on a light van, or combined with our Topo 2 Inch front lift kit, for 4 Inch of total lift in the front. A 4 Inch lifted front will clear a 285/70R17, a versatile size tire great for off-highway use and on.

Features and Benefits:

  • Track width is increased modestly (1/2 Inch per side, 1 Inch total) for increased stability and a better scrub radius with larger tires
  • Precision cut and machined parts key together to ensure solid construction
  • Trimming of the pinch seam is required
  • A complete hardware kit is included, and the spindles are plated with zinc oxide for corrosion resistance
  • The added clearance allows easier fitment of larger tires, further increasing ground clearance and upping the capability of your 2WD van
  • Motorcraft ball joints come pre-installed to simplify the installation process and ensure years of trouble free service
  • Our spindle was carefully designed to preserve the complex geometry of the front end without altering tie rod angle or placement, maintaining camber, caster and Ackerman angles within their correct specifications
  • When properly engineered, there are no down sides
  • \We recommend a 17 Inch x 8 Inch wheel with 45MM offset
  • A 4 Inch lifted front will clear a 285/70R17, a versatile size tire great for off-highway use and on
  • Designed to work both as a standalone product to lift the front for a leveled stance on a light van, or combined with our Topo 2 Inch front lift kit, for 4 Inch of total lift in the front

Associated Comments:

  • Note: We recommend a 17 Inch x 8 Inch wheel with 45MM offset. Trimming of the pinch seam is required.

Details:

  • Lift Height: 2.0 Inch
  • Grade Type: Performance
  • Hardware Included: Yes
  • Recommended Shop Labor Time: 5 Hours
  • Color: Black
  • Material: Steel
  • Construction: Fabricated
  • Instruction Manual Included: Yes
  • Drive: RWD
  • Warranty: 60 Days-Finish Limited Lifetime-Structural

Van Compass Lift Spindle, 2 Inch Lift, Transit RWD

Front 2 Inch Lift Spindle Ford Transit (2015-Up RWD Single Wheel Only) Van Compass

Front 2 Inch Lift Spindle Ford Transit (2015-Up RWD Single Wheel Only) Van Compass

$1,664.95
