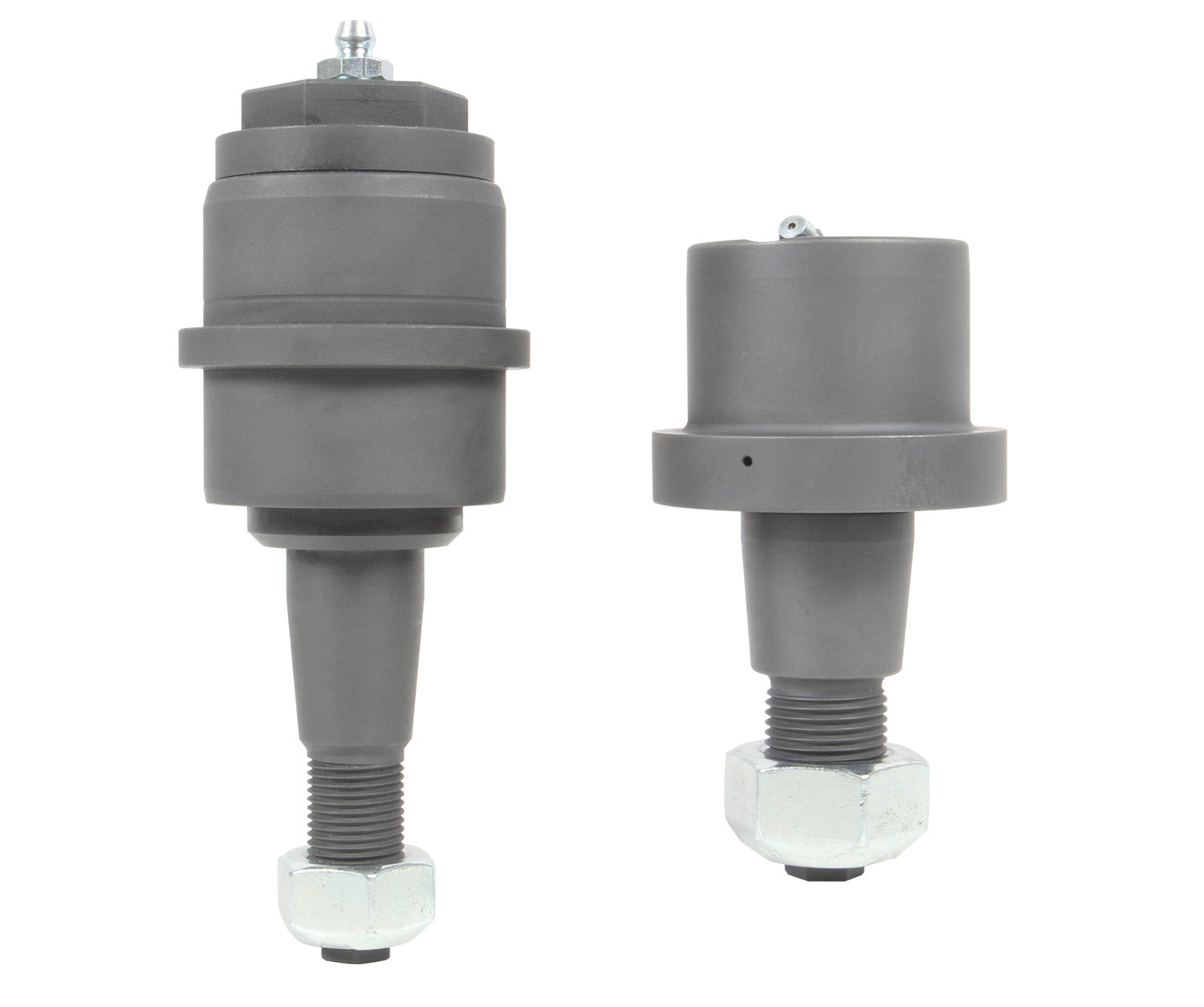

Extreme-Duty Ball Joint Package 4WD 2013/14-2023 RAM 2500/3500 Carli Suspension

Carli Extreme-Duty Ball Joints are designed to be superior to stock at every turn. Materials, process, and exacting build tolerances play a critical role in the impressive durability and performance of Carli Extreme-Duty Ball Joints.

Features and Benefits:

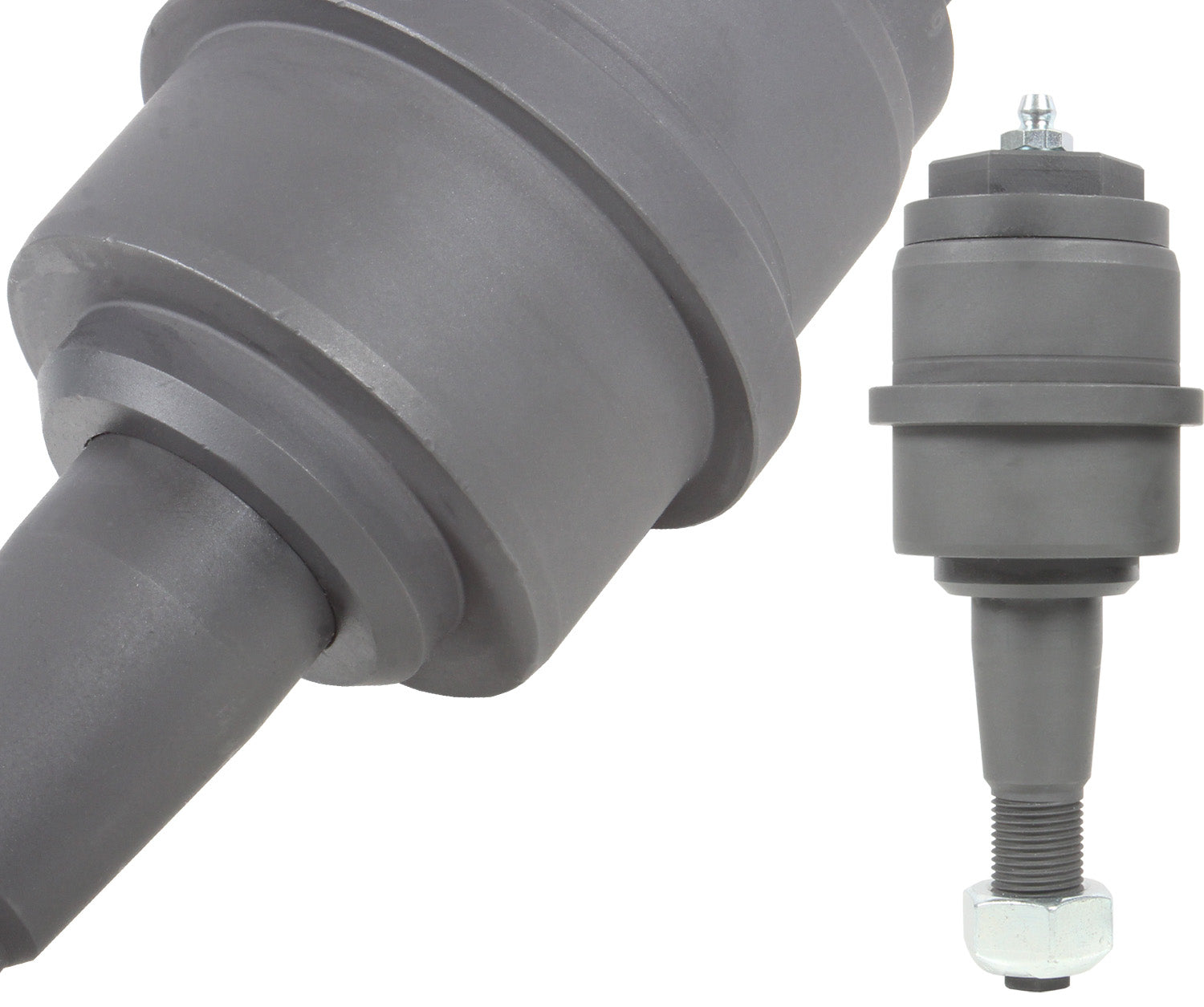

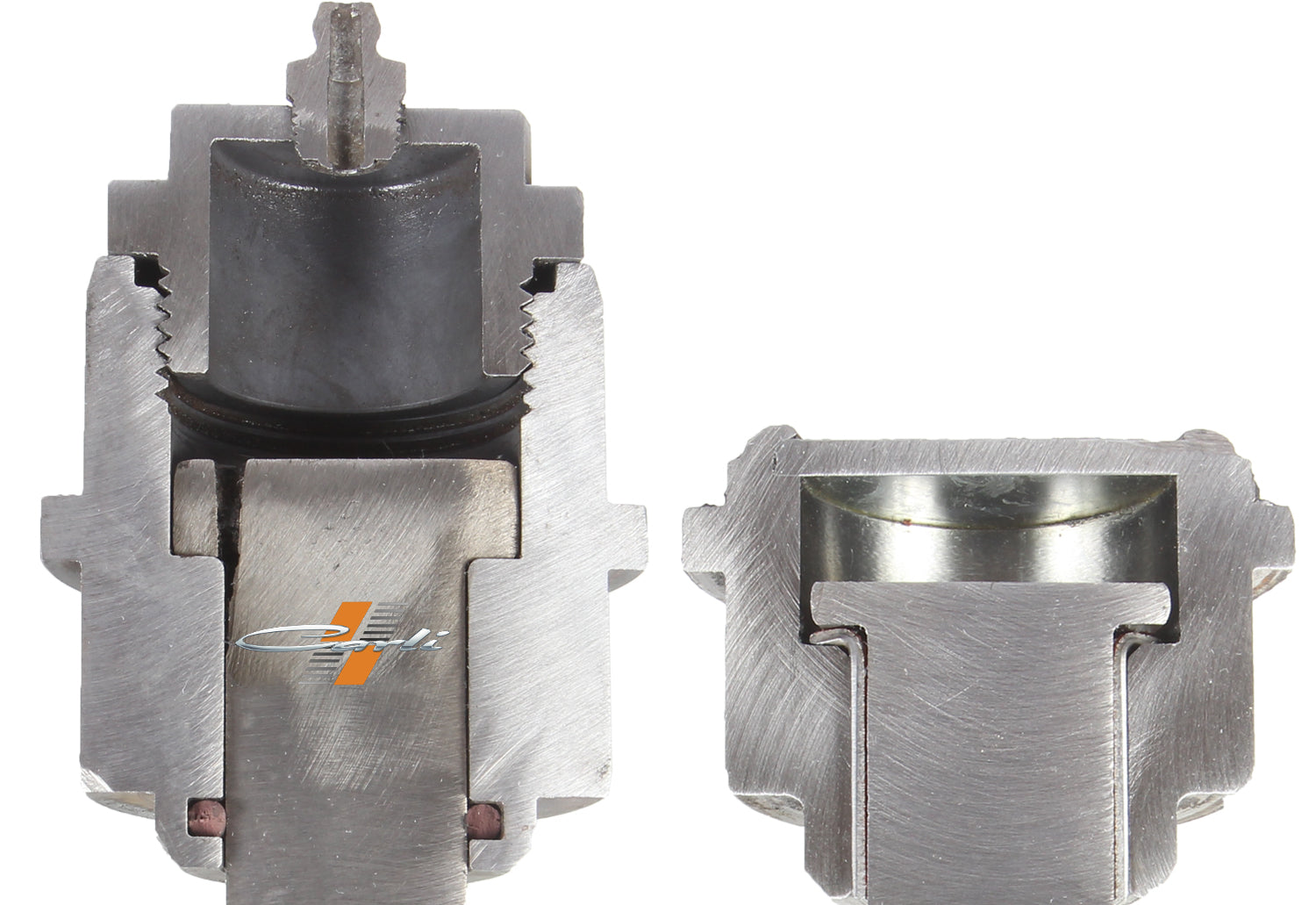

• Ball joints are made up of a lower ball joint and upper floating king-pin. The upper ball joint is designed as a pivot point determining the axis on which the knuckle will move and thus, Only sees a lateral load. The lower ball joint tracks the knuckle on an imperfect axis, the spherical lower is Required to allow the knuckle to move freely with Only a slight vertical travel through its steering cycle. Carli Extreme-Duty Upper Ball Joints have a pin and housing but the hat of the pin contacts the housing. This adds a second wear surface to further distribute the load applied laterally to the ball joint while providing the same failsafe as a factory ball joint ensuring the pin cannot be pulled through the bottom of the ball joint housing. Further, there is no sleeve isolating the wear surfaces, eliminating the point of failure. A Viton Seal at the bottom of the housing prevents the environment elements from entering the ball joint. The lower joints have no liners of any kind. At the top, a bronze wear surface preloaded by a disc spring, safety washer and snap ring ensures the ball joints wear surfaces are always held tightly together for superior performance. Materials and process play an important role in the impressive durability and performance of Carli Extreme-Duty Ball Joints. It starts with masking. All surfaces but the wear surface are masked with a copper plating. Once plated, the ball joints head to carburizing. The carburizing creates an extremely hard surface with a case-hardness (penetrating depth) of 20-25 thousandths. When the ball joint has completed the carburizing/heat treatment, it's stripped of the copper masking, leaving the entire joint heat treated and the wear surfaces incredibly hard. The entire joint is then covered with a corrosion resistant gray coating for protection from the elements.
• Lifetime Warranty: Carli Ball Joints carry an industry leading lifetime warranty. If you ever see excessive play in these at any point throughout the lifetime of your truck, Carli will replace it free.

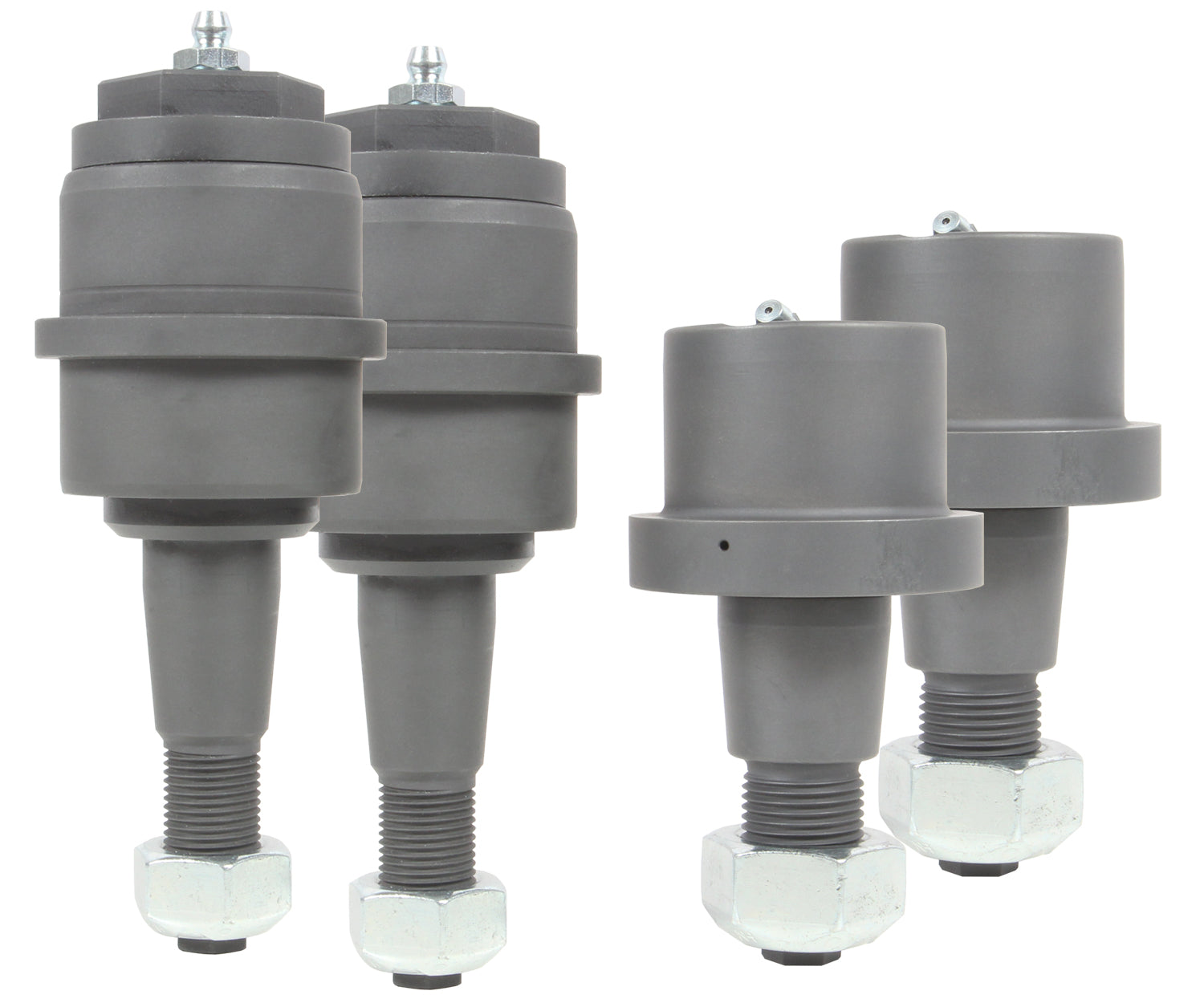

• Included items: The Lifetime Ball Joint kit includes 2 upper and 2 lower ball joints, along with the necessary lower ball joint install tool and a full tube of Redline CV2 grease to be used for initial installation and maintenance.

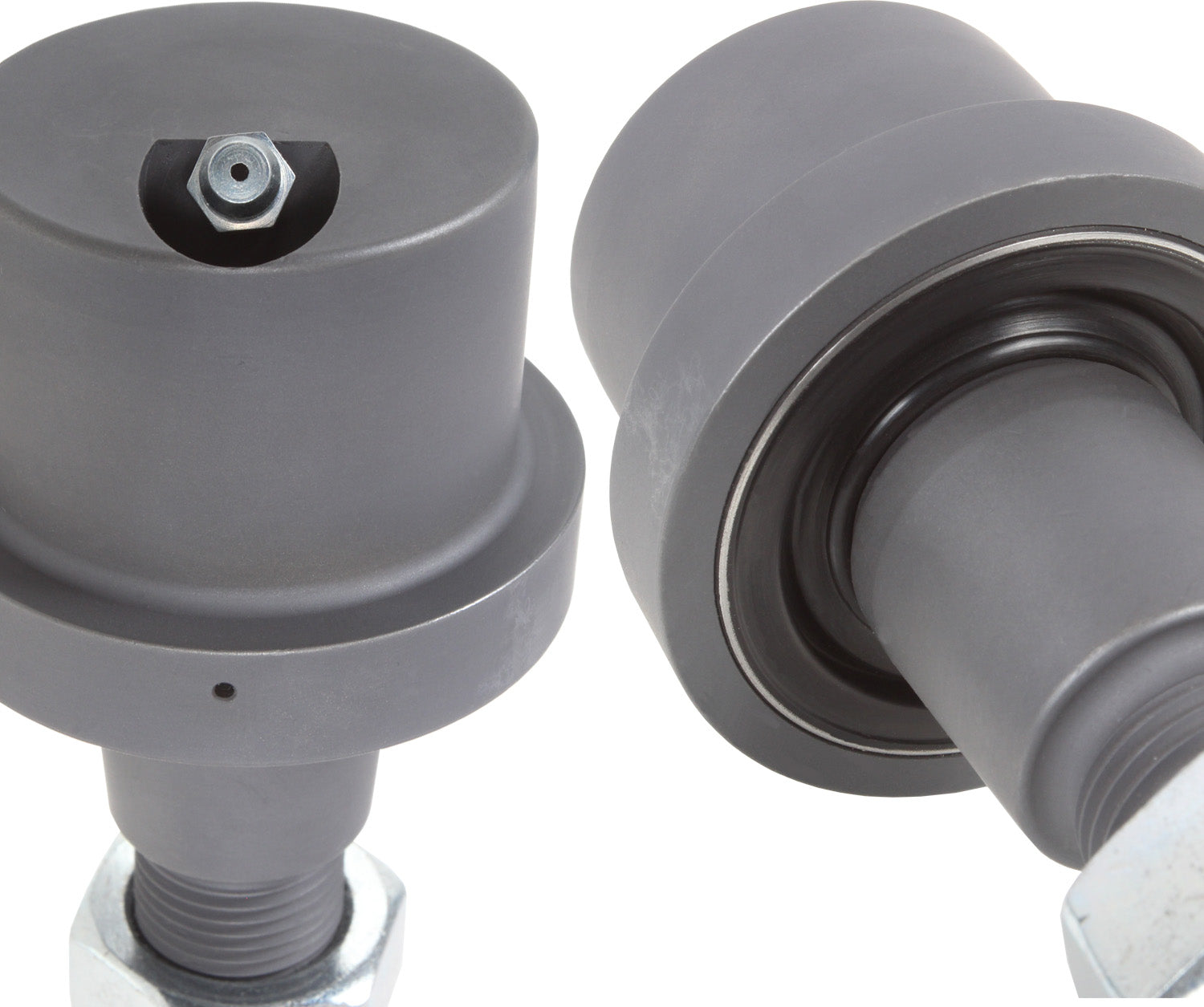

• Ease of maintenance: Carli Lifetime Balljoints feature easily accessible grease fittings. The fittings on the lower ball joint are recessed for protection and installed at an angle, making greasing an easy and simple process.

Details:

• Drive: 4WD
• Fitment Notes: 14+ 2500, 13+ 3500
• Warranty: Limited Lifetime Warranty

Fitment:

2014-2026 RAM 2500 (Front) (Drive: 4WD / Note: 14+ 2500, 13+ 3500)

• 2013-2023 RAM 3500 (Drive: 4WD / Note: 14+ 2500, 13+ 3500)
