Complete 4 Inch Lift Kit Ford Transit (2018-Up RWD Single Wheel Only) Van Compass

Price
$3,527.75

📞 Price too high or questions before ordering? Call/text us at 475-227-5381

Finally! A complete, 4 Inch lift kit for the Transit RWD platform.

Combining our proven Topo 2 Inch lift kit, tuned rear mini leaf spring pack and new 2 Inch lift spindle allows you to create the ultimate high-clearance 2WD setup for clearing bigger tires and getting your van the clearance it needs to go farther.

Lift spindles are a long-time staple of the desert racing world, adding front clearance where it matters most: underneath the front control arms, cross members and frame. The added clearance allows easier fitment of larger tires, further increasing ground clearance and upping the capability of your 2WD van.

Track width is increased modestly (1/2 Inch per side, 1 Inch total) for increased stability and a better scrub radius with larger tires.

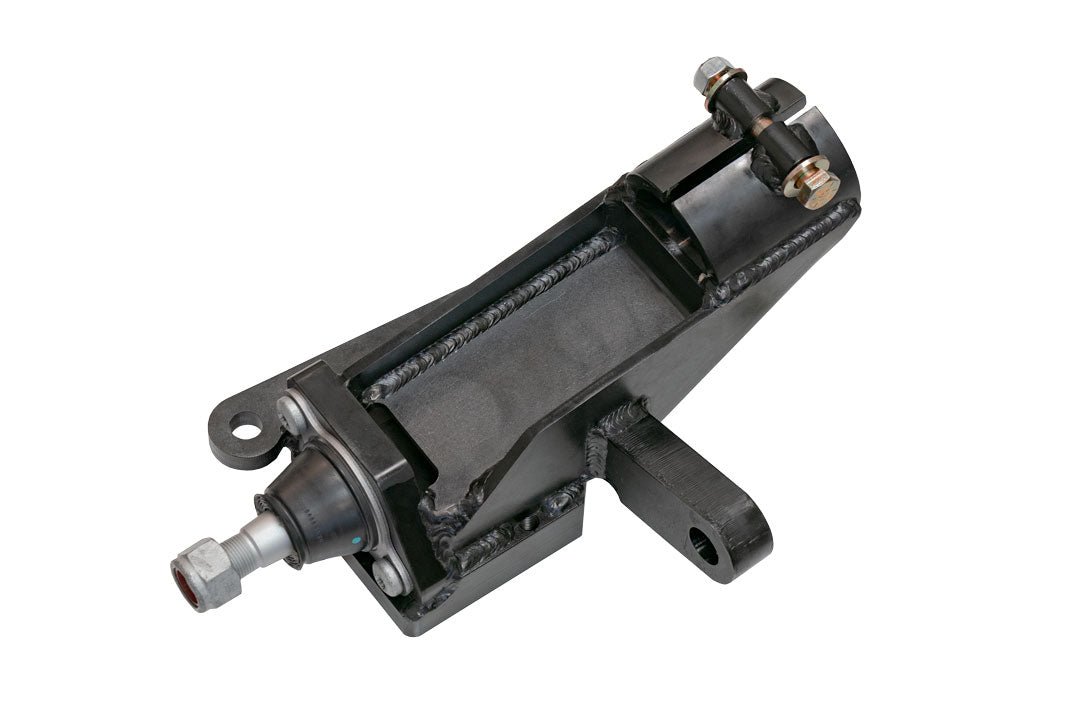

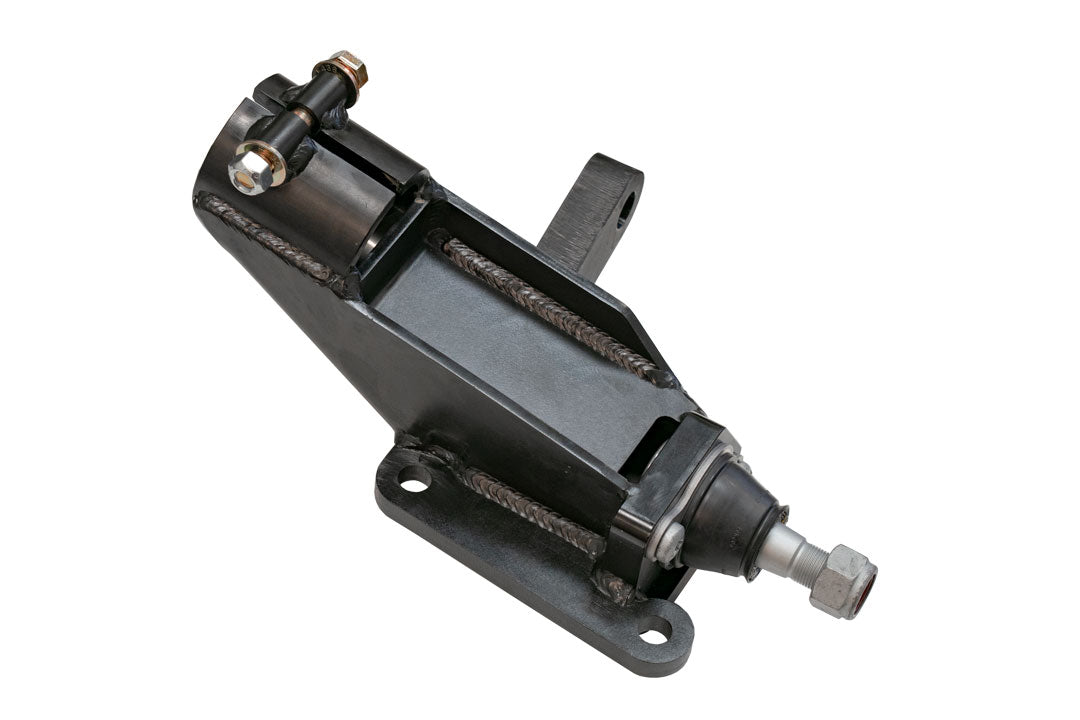

When properly engineered, there are no down sides. Our spindle was carefully designed to preserve the complex geometry of the front end without altering tie rod angle or placement, maintaining camber, caster and Ackerman angles within their correct specifications.

Precision cut and machined parts key together to ensure solid construction. Motorcraft ball joints come pre-installed to simplify the installation process and ensure years of trouble free service.

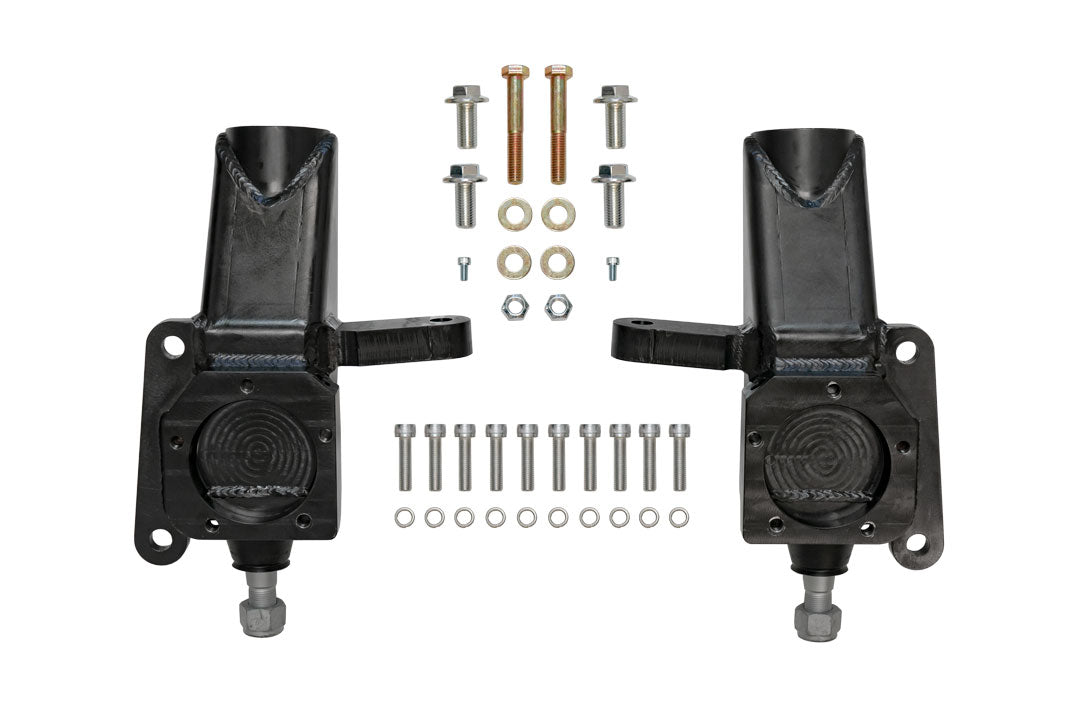

A complete hardware kit is included, and the spindles are plated with zinc oxide for corrosion resistance.

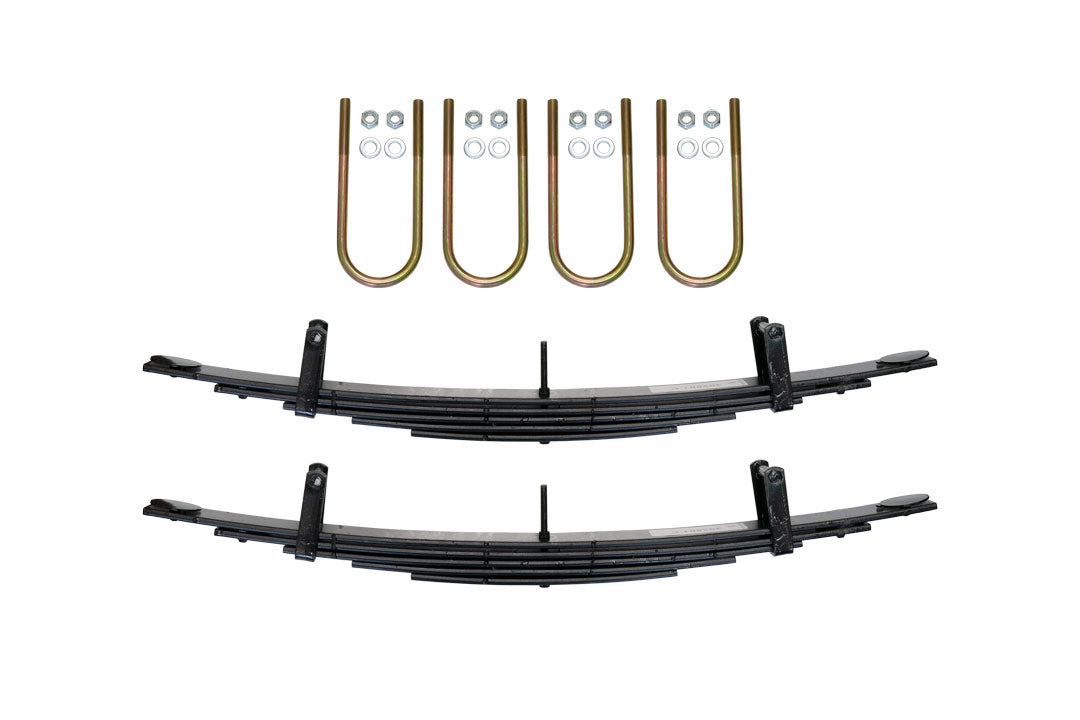

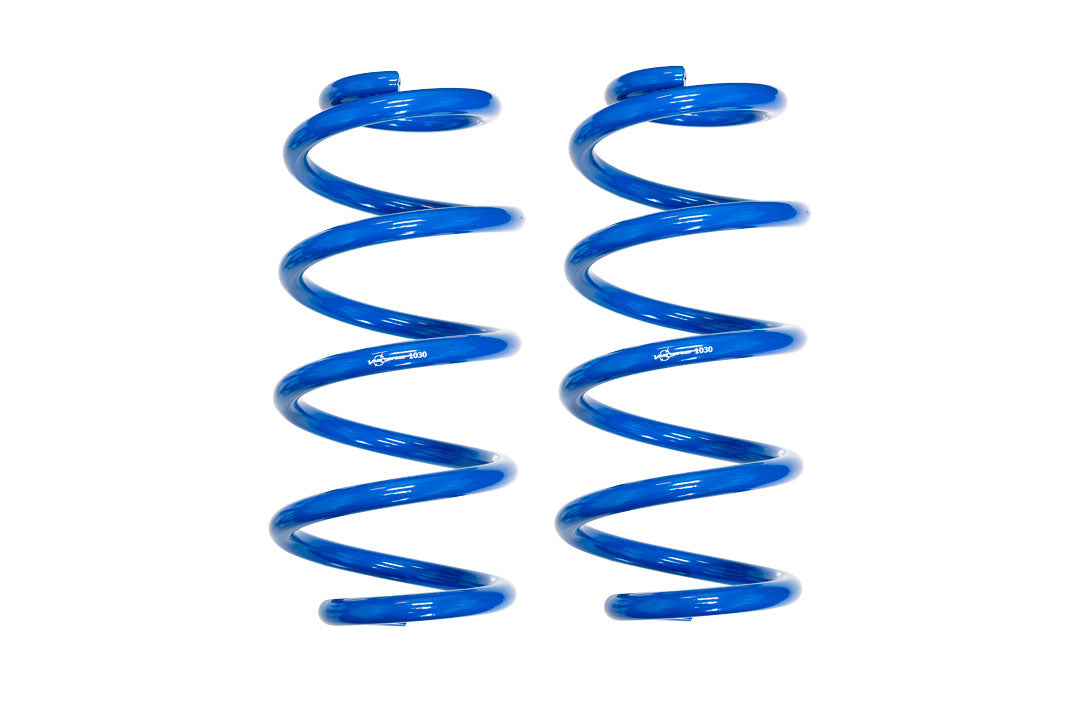

Our 2 Inch Topo front and rear lift kit includes a taller coil spring and camber correction plates to ensure correct front end alignment geometry. The combination of a lift block and mini leaf spring offers a reliable way to increase ride height and add spring rate for heavy vans.

This kit is fully compatible with our Falcon rear shock upgrade and Bilstein front struts, for a huge increase in handling and performance. A 4 Inch lifted front will clear a 285/70R17, a versatile size tire great for off-highway use and on.

Associated Comments:

  • Note: Van must be professionally aligned after lift kit installation! Adverse tire wear and driving characteristics will result if van is not properly aligned.
  • Note: Vans equipped with a factory rear sway bar require our extended rear sway bar links, part number 3067.

Details:

  • Lift Height: 4.0 Inch
  • Grade Type: Performance
  • Hardware Included: Yes
  • Recommended Shop Labor Time: 12 Hours
  • Maximum Lift: 4.0 Inch
  • Shocks Included: No
  • Strut(s) Included: No
  • Bushings Included: Yes
  • Add-On Part: 3067 - Extended Sway Bar Links - Transit 2015+ (use With Topo 2 Inch Rear Lift Kit)
  • Maximum Lift Front: 4 Inch
  • Maximum Lift Rear: 2 Inch
  • Leaf Spring Color: Black
  • Spring Material: Steel
  • Coil Spring Color: Blue
  • Coils Quantity Front: 2
  • Drive: RWD
  • Warranty: 60 Days-Finish Limited Lifetime-Structural

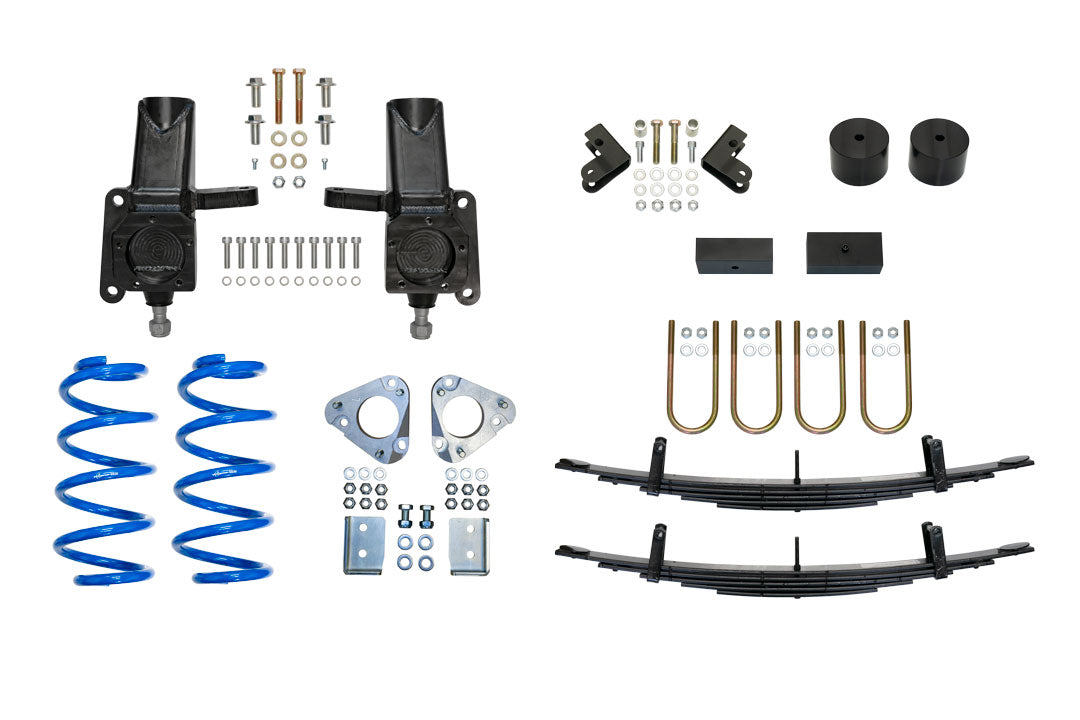

Van Compass Topo 4 Inch Lift Kit - Ford Transit, Lift Spindle And Blue Coil
