23+ Ford F250/350 4x4 Radius ARM Drop Brackets 3.5 inch Lift Carli Suspension

Price
$895.00

📞 Price too high or questions before ordering? Call/text us at 475-227-5381

Designed for perfect fitment on the updated 2023+ Ford Superduty trucks, these drops will correct geometry with 3. 5 inch lifts.

Features and Benefits:

  • The 2023+ Super Duty introduced some new challenges, specifically pertaining to caster. The steering assist and Ford's 1 Degree - 3.6 Degree allowable caster range seems to work alright for those equipped with stock, relatively low-mileage Super Duties but, once a lift or oversized tire enters the equation, the handling at this low caster specification leaves US wanting.
  • When lifting the front of the Super Duty 3 - 3.5 , the factory caster is reduced by approximately 1.5 Degree. For the 2020-23 Super Duty, we provide a 2 Degree caster shim which is enough to restore this caster and add a touch more - unfortunately, this touch more is rarely enough for proper tracking. This leaves US recommending our Adjustable Radius Arms proven to add an additional 2.5 Degree of caster (when maxed). Combining the Carli Arms and 2 Degree shims results in a Super Duty on 37 tires that holds a lane, and returns to center after a turn, better than a stock truck.
  • Enter the 2024 Super Duty - Ford made ONE change to the platform... They added an outer axle-mounted guard to prevent debris from entering the outside axle tube. The issue is in the functionality of the ball-joint mounted caster shims we provide in our 05-23 Super Duty Systems to correct the caster. These shims don't affect the axial position of the axle, but rotate the knuckle/upper ball joint position rearward relative to the axle's outer c to increase caster.
  • Given the tight proximity of this debris shield to the axle tube, any caster shim over 1 Degree will cause contact. Unfortunately, these trucks come with low caster from the factory compounded by the loss of caster from lifting the truck (radius arms tilt the axle forward - reducing caster - as the axle travels away from the frame)
  • we had to figure out a solution.

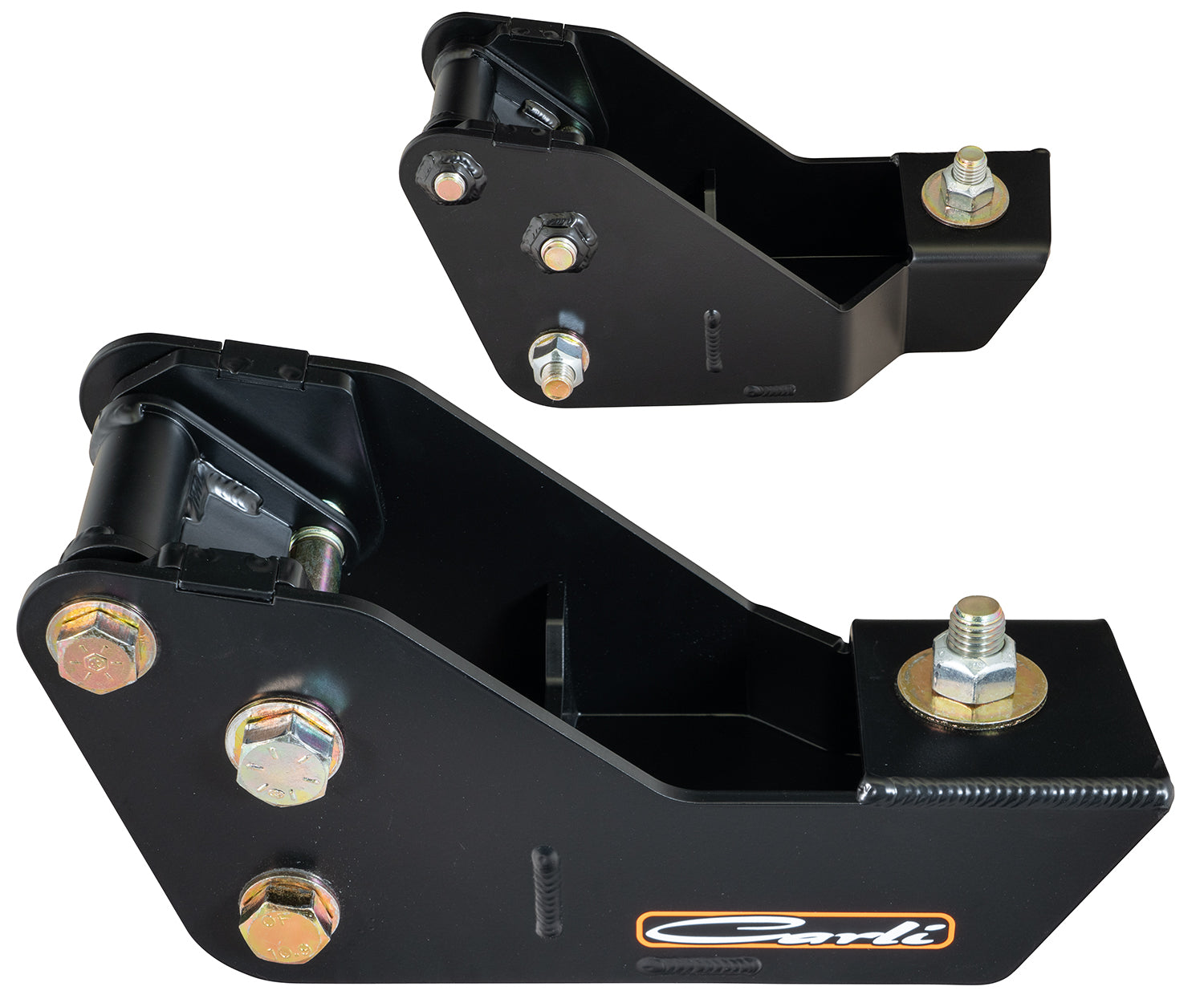

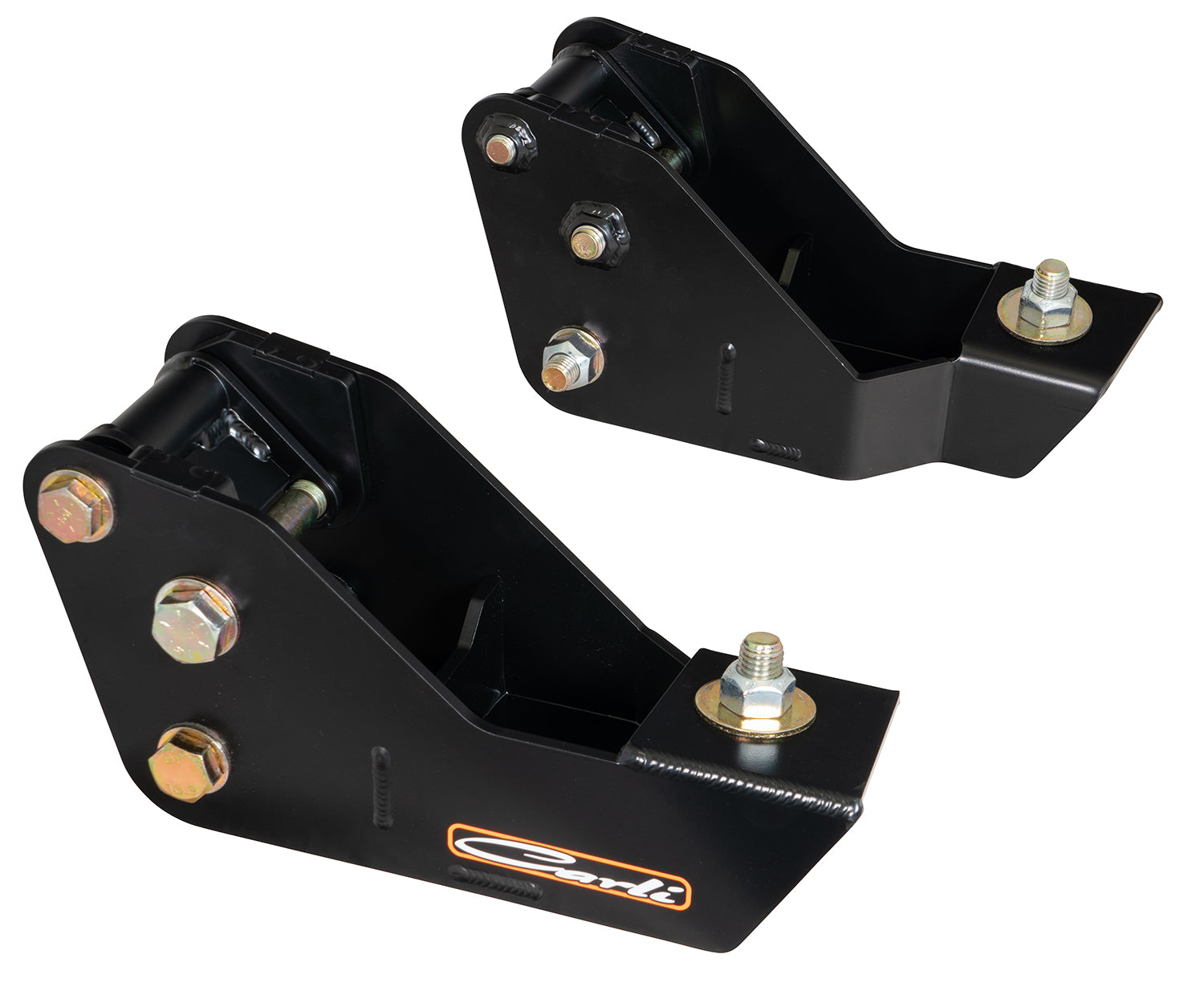

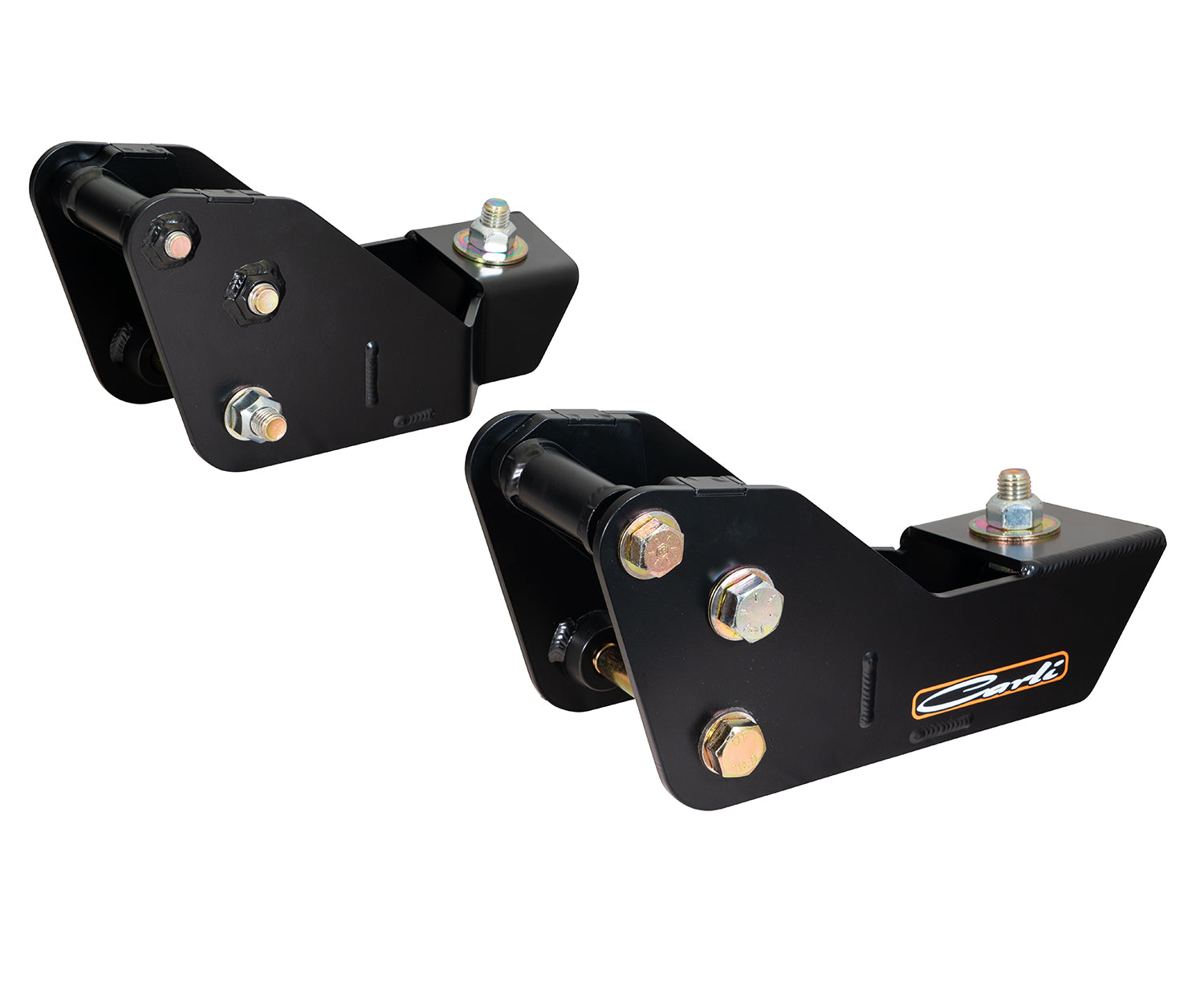

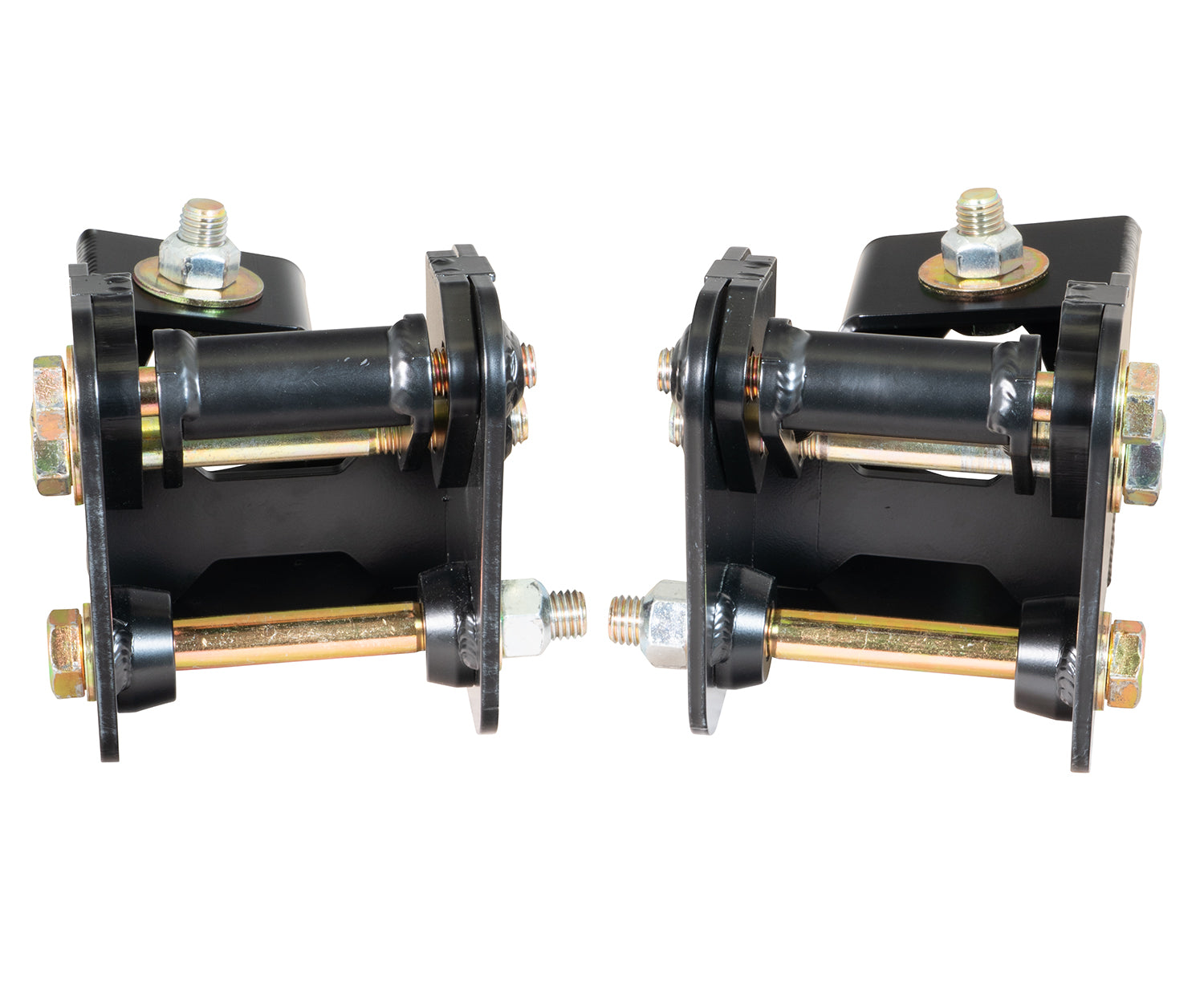

  • The Carli Radius Arm Drops for 3.5 inch lifts were designed to fix this problem once and for all. The bolt-on design is a simple and easy installation that will provide the necessary increase in caster at a lower price point than installing the full Carli Radius Arm System and are compatible with stock OR the Carli Adjustable arms.
  • Drops pivot point for ideal radius arm angle on 3.5 inch lifts.
  • Fabricated 1/4 inch steel construction ensures maximum strength.
  • Complete bolt-on installation with no welding Required.
  • Durable Black Powdercoat finish.

Details:

  • Color: Black
  • Grade Type: Performance
  • Finish: Powdercoat
  • Drive: 4WD
  • Lift Height: 3.5 inch
  • Warranty: Limited Lifetime

Fitment:

2023 Ford F-250 Super Duty (Drive: 4WD)

  • 2023 Ford F-350 Super Duty (Drive: 4WD)
